Spiral Cable: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Spiral Cable Replacement Components (1 Of 3)
G05161663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

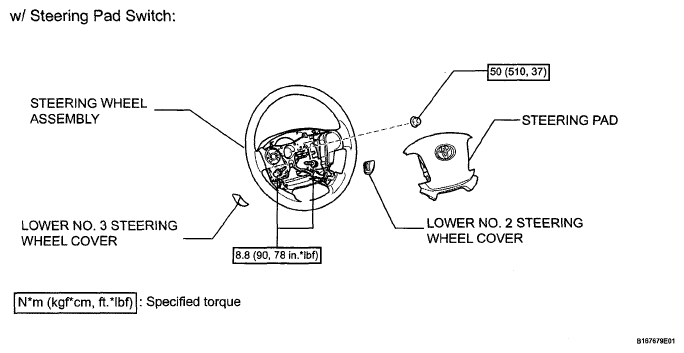

Fig 2: Identifying Spiral Cable Replacement Components (2 Of 3) With Torque Specifications
G05155957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

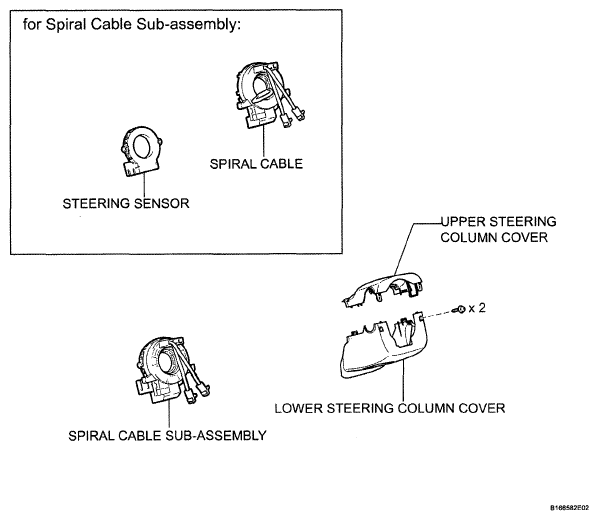

Fig 3: Identifying Spiral Cable Replacement Components (3 Of 3)
G05155958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
