Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT SEAT ASSEMBLY LH
    1. Remove the front seat (see REMOVAL ).
  2. REMOVE SEAT POSITION SENSOR
    1. Using a T30 "TORX" socket wrench, remove the screw and seat position sensor with sensor protector.
    2. Disconnect the connector.
    3. Remove the seat slide position sensor protector from the seat position sensor.

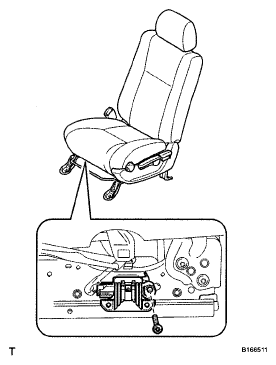

      Fig 1: Identifying Screw & Seat Position Sensor
      G05156070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
