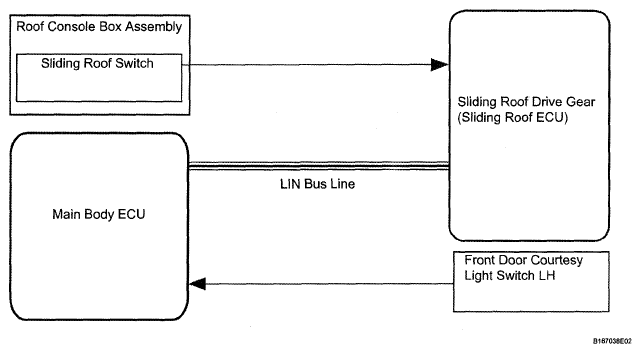

System Diagram
WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication table
SLIDING ROOF SYSTEM COMMUNICATION CHART
| Sender |
Receiver |
Signal |
Line |
| Main Body ECU |
Sliding Roof Drive Gear (Sliding Roof ECU) |
- Key-off operation signal
- Vehicle speed signal
|
LIN |
