System Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

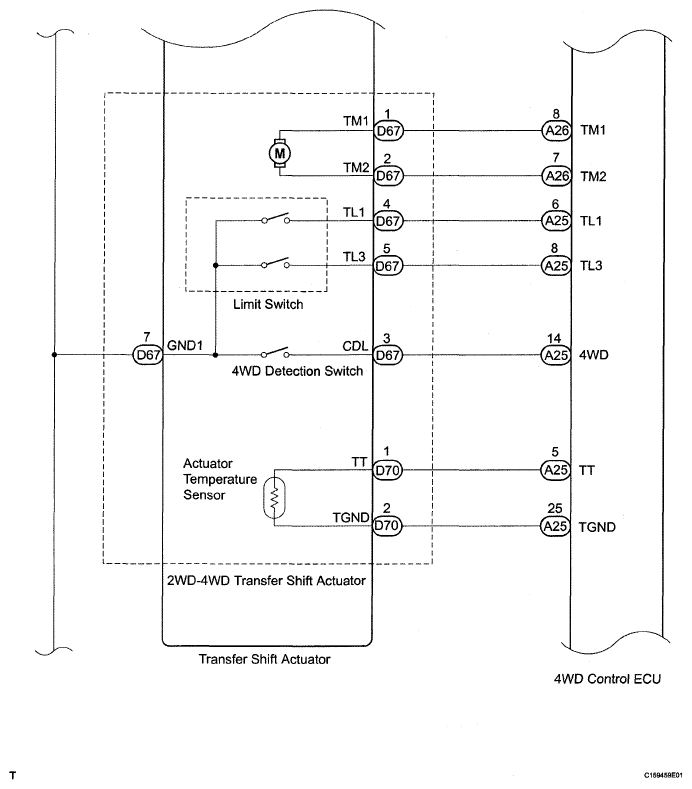

Fig 1: Touch Select 2-4 And High-Low System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

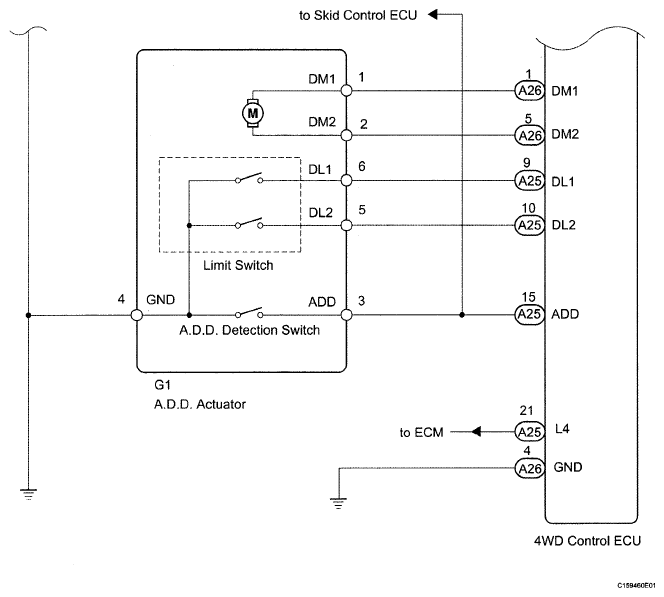

Fig 2: Touch Select 2-4 And High-Low System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

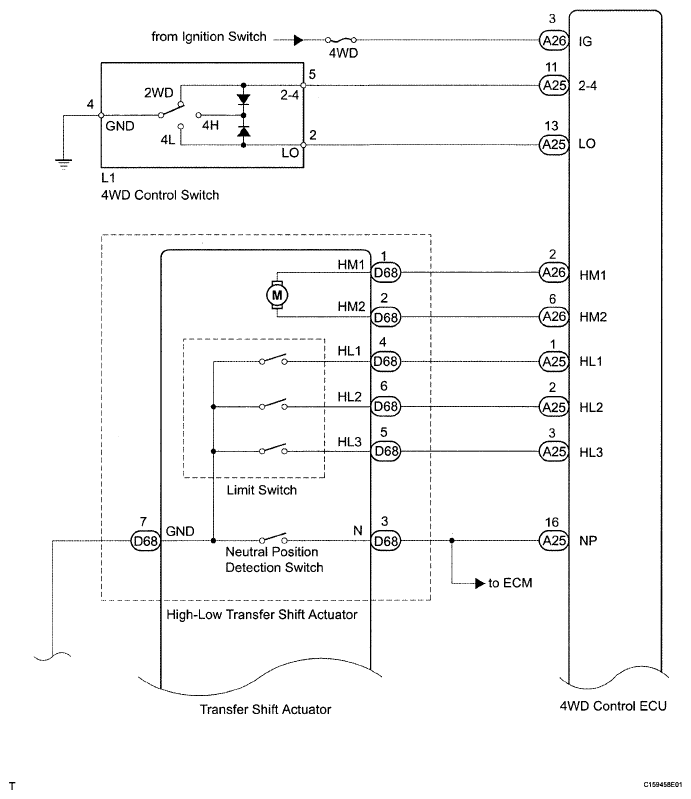

Fig 3: Touch Select 2-4 And High-Low System Diagram (3 Of 4)

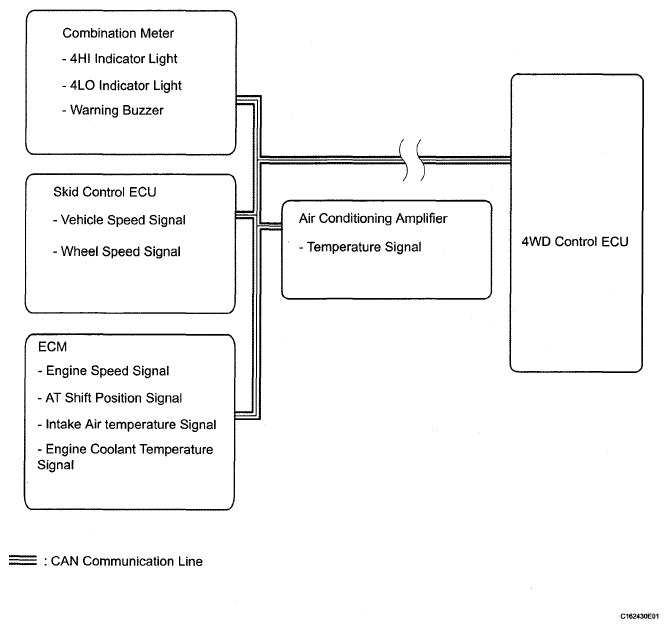

Fig 4: Touch Select 2-4 And High-Low System Diagram (4 Of 4)
