Mode 6 - 2008 M35 & M45
>>
M45
Mode 6 - 2008 M35 & M45: M45

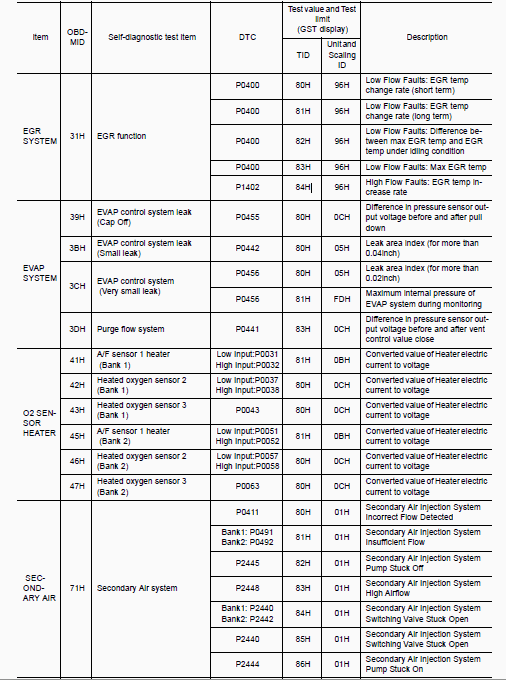

Fig 1: Mode $06 Data For M45 (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

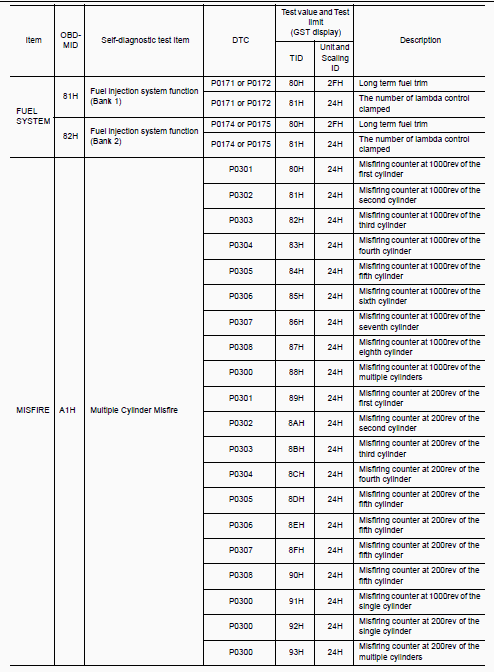

Fig 2: Mode $06 Data For M45 (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Mode $06 Data For M45 (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Mode $06 Data For M45 (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Mode $06 Data For M45 (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
