Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns For "Misfire" < Exhaust Quality Deterioration >, "Fuel Injection System"

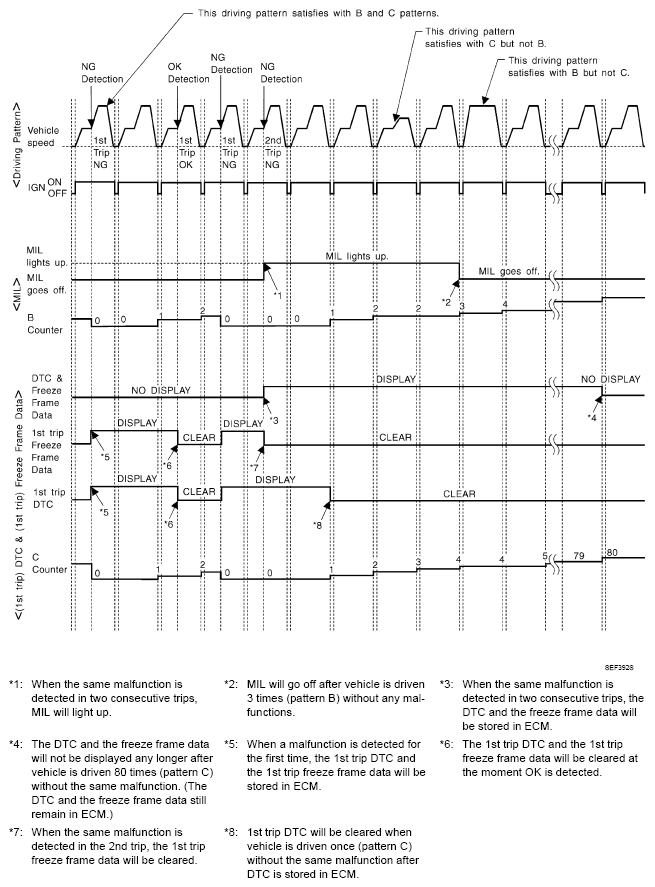

Fig 1: Relationship Chart Between MIL, DTC, 1st Trip DTC And Driving Patterns For Misfire
G05209433Courtesy of NISSAN MOTOR CO., U.S.A.
