Oil Filter Bracket (AWD): Components

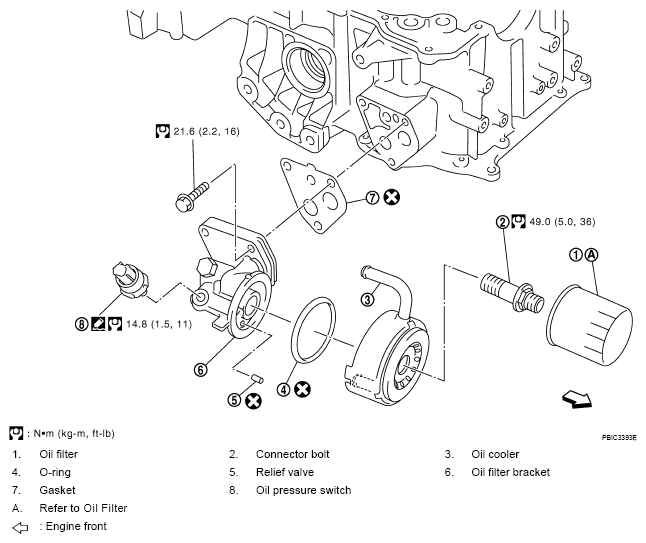

Fig 1: Oil Filter Bracket Replacement Components With Torque Specifications (AWD)

Courtesy of NISSAN MOTOR CO., U.S.A.

• Refer to "COMPONENTS " for symbol marks in the figure.
