Warning Lamps: Schematic

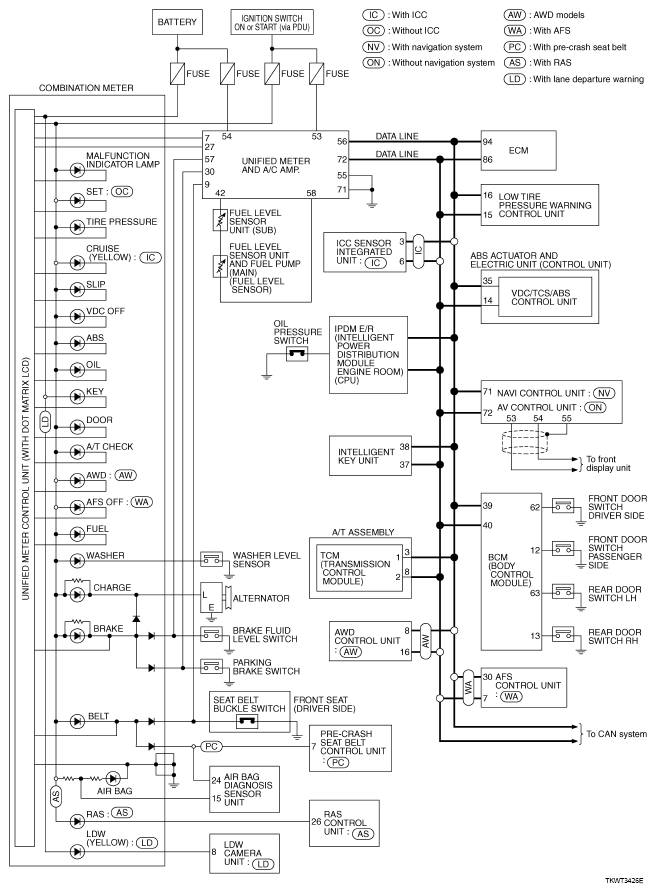

Fig 1: Warning Lamps Schematic Diagram

G05214276

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For the further details, refer to descriptions on each system.
