Wiring Diagram - WINDOW -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

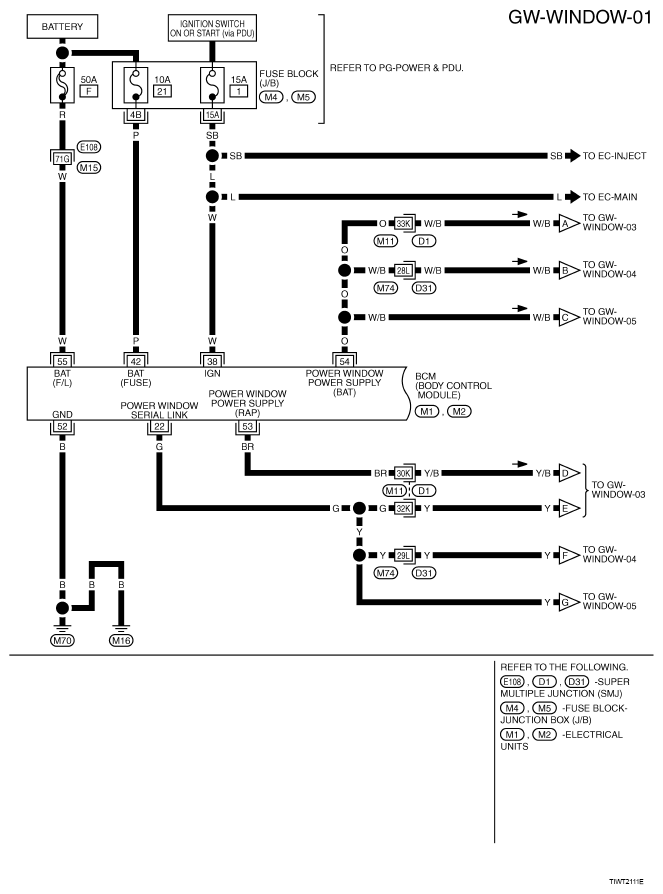

Fig 1: GW-WINDOW-01 - Wiring Diagram
G05212560Courtesy of NISSAN MOTOR CO., U.S.A.

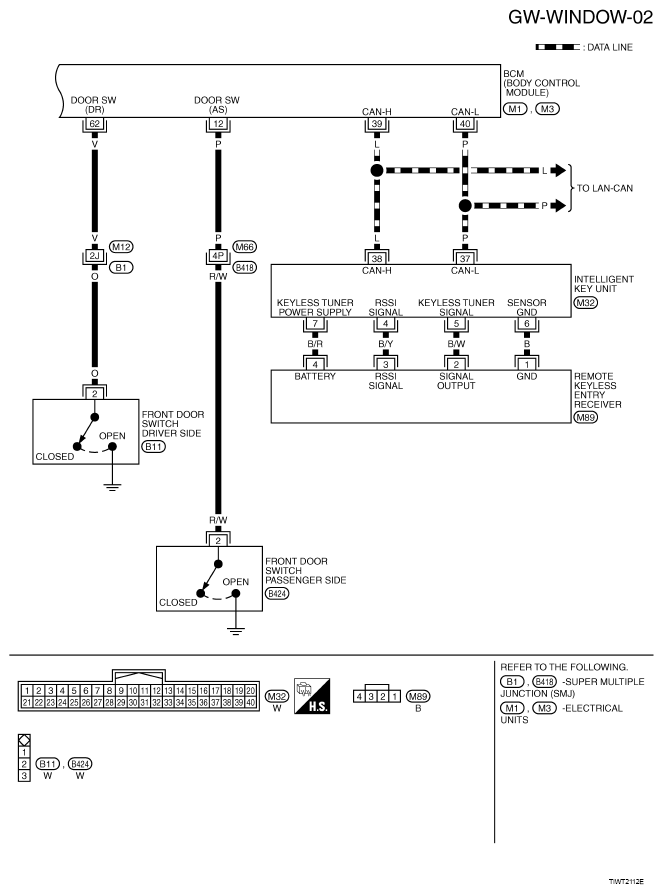

Fig 2: GW-WINDOW-02 - Wiring Diagram
G05212561Courtesy of NISSAN MOTOR CO., U.S.A.

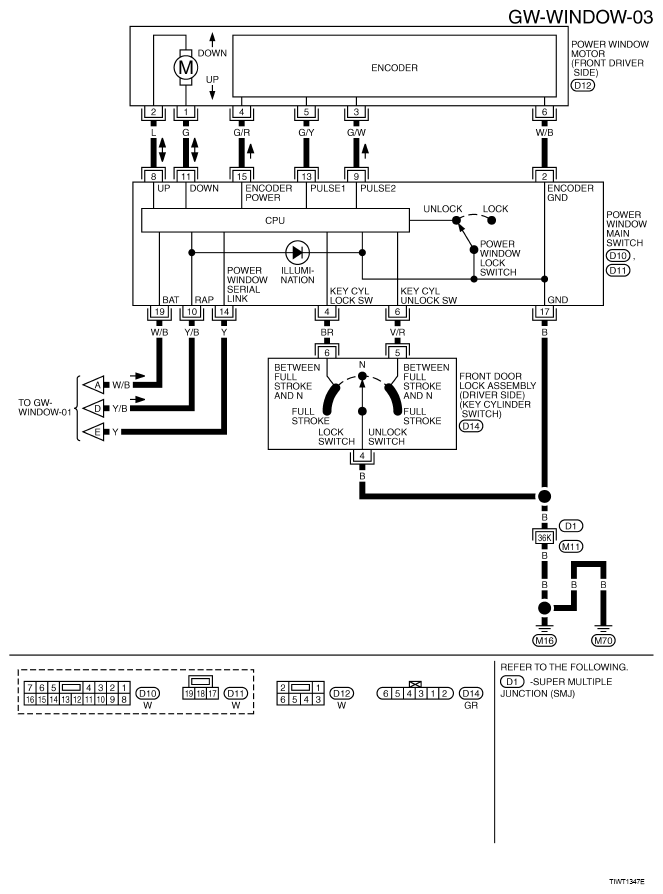

Fig 3: GW-WINDOW-03 - Wiring Diagram
G05212562Courtesy of NISSAN MOTOR CO., U.S.A.

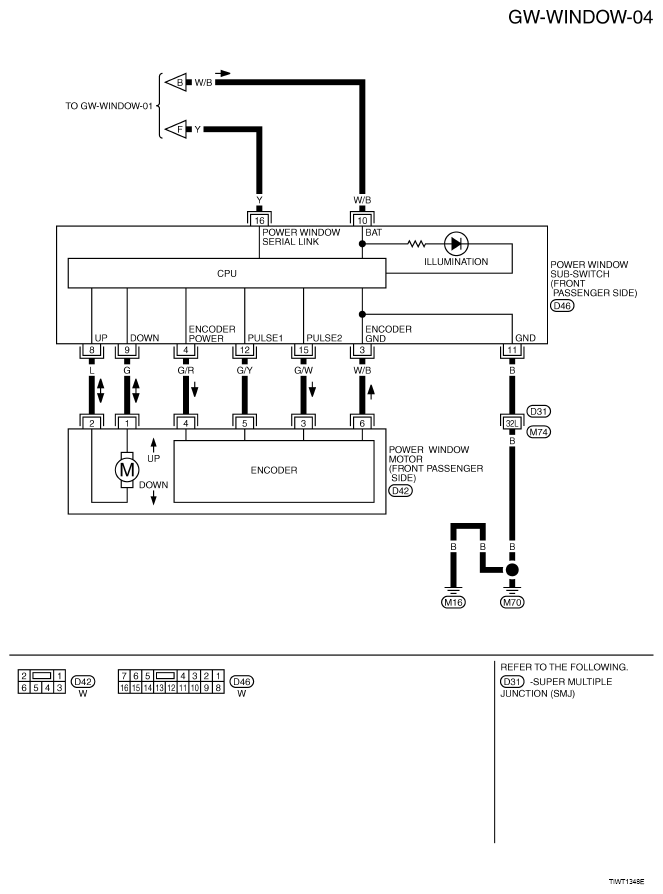

Fig 4: GW-WINDOW-04 - Wiring Diagram
G05212563Courtesy of NISSAN MOTOR CO., U.S.A.

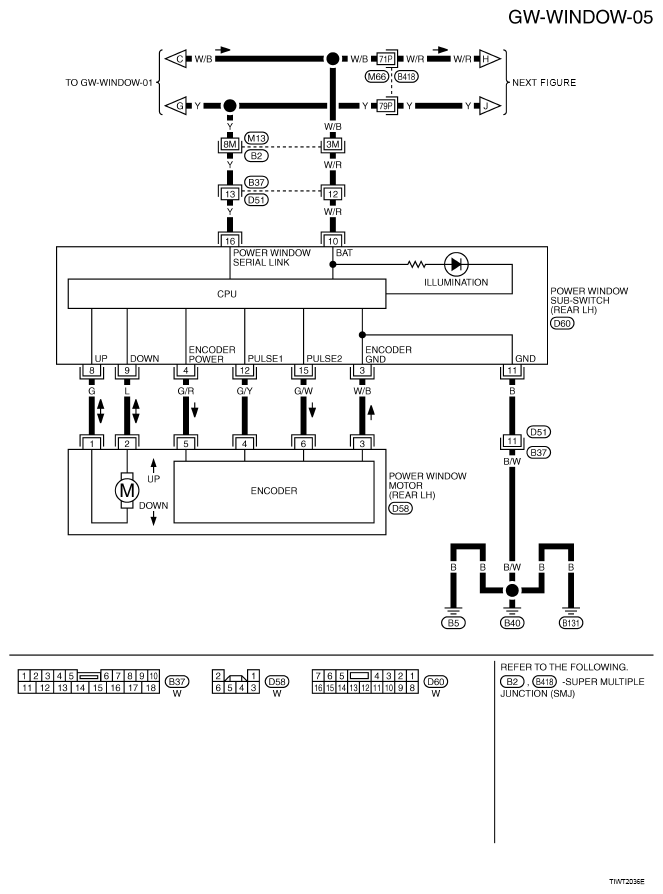

Fig 5: GW-WINDOW-05 - Wiring Diagram
G05212564Courtesy of NISSAN MOTOR CO., U.S.A.

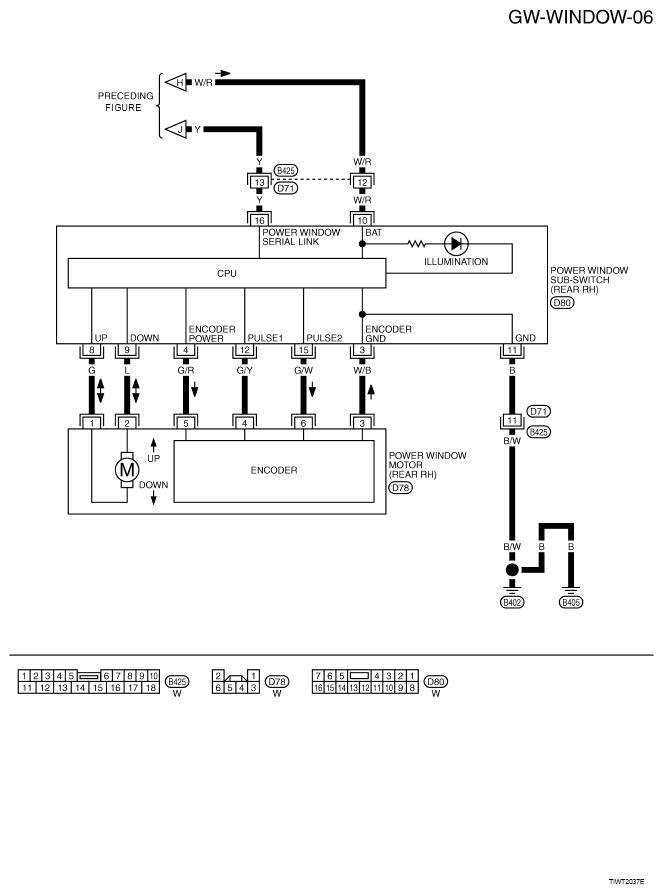

Fig 6: GW-WINDOW-06 - Wiring Diagram
G05212565Courtesy of NISSAN MOTOR CO., U.S.A.
