Removal and Installation of Trunk Lid Assembly: Notes

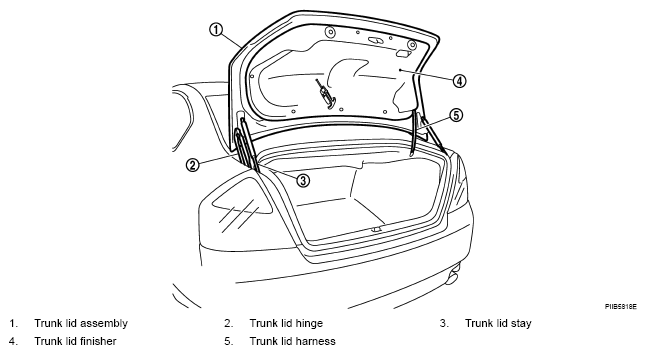

Fig 1: Identifying Trunk Lid Assembly Components

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

• After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.
• After installing, check operation.
• After installing, perform fitting adjustment. Refer to "FITTING ADJUSTMENT ".
