Exploded View

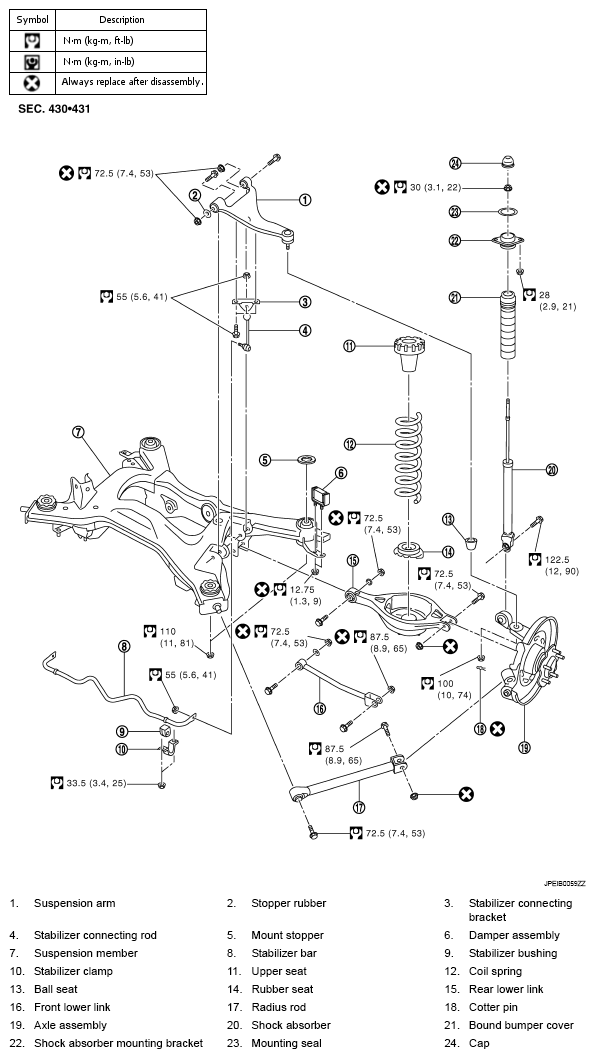

Fig 1: Exploded View Of Rear Lower Link And Coil Spring With Torque Specification
G05734843Courtesy of NISSAN MOTOR CO., U.S.A.
