G37 Base
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering Control System (With 4WAS)
>>
Function Diagnosis
>>
4WAS System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View

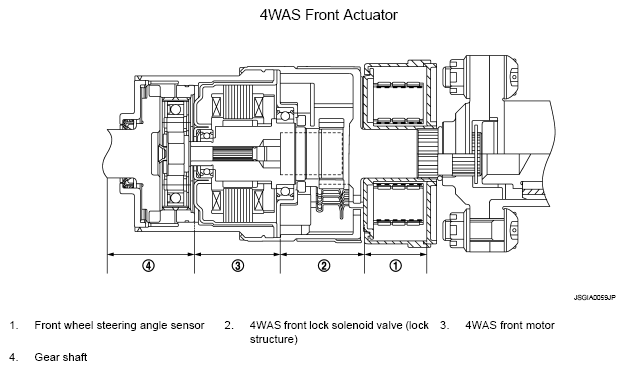

Fig 1: Cross-Sectional View Of 4WAS Front Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.

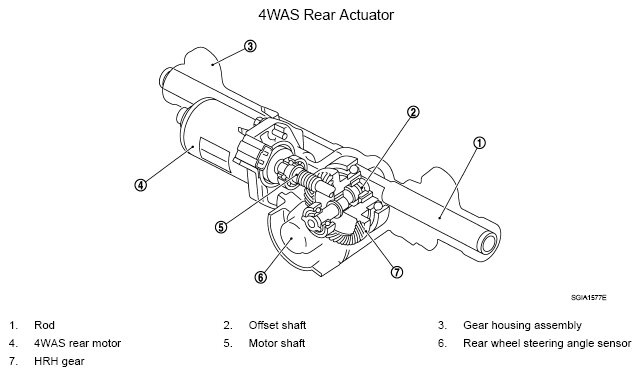

Fig 2: Cross-Sectional View Of 4WAS Rear Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
