WITHOUT 4WAS : Exploded View

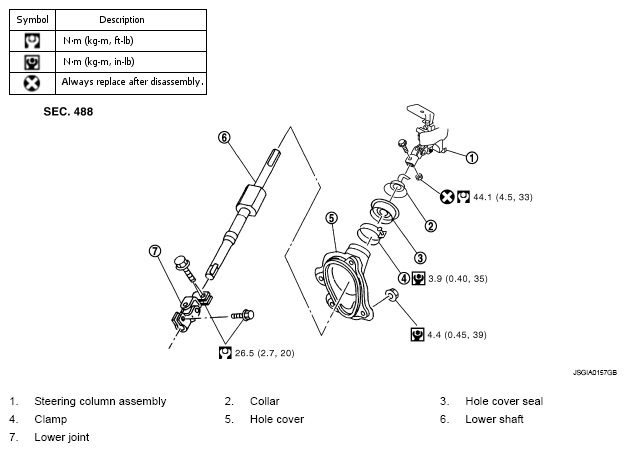

Fig 1: Lower Shaft Replacement Components With Torque Specifications
G05735154Courtesy of NISSAN MOTOR CO., U.S.A.
