Overall Sequence

WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

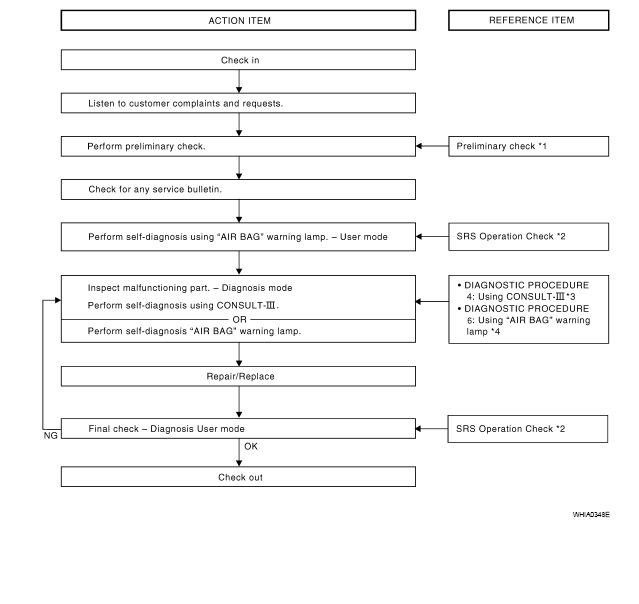

Fig 1: Diagnosis And Repair Work Flow Chart
G05706704Courtesy of NISSAN MOTOR CO., U.S.A.
*1Trouble Diagnosis Introduction
*2SRS Operation Check
*3Trouble Diagnosis with CONSULT-III
*4Self-Diagnosis Function (Without CONSULT-III)
