Oil Pump: Components

WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

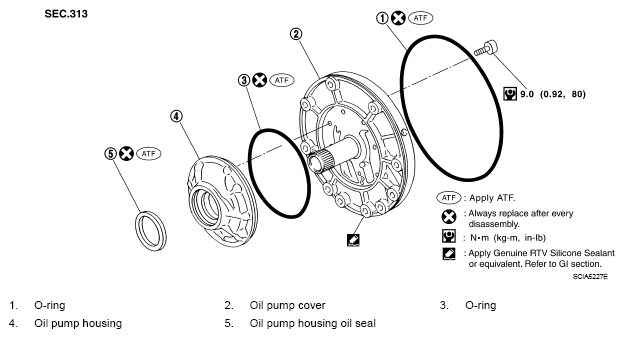

Fig 1: Oil Pump Replacement Components With Torque Specifications
G05719854Courtesy of NISSAN MOTOR CO., U.S.A.
