System - Basic Engine Control System

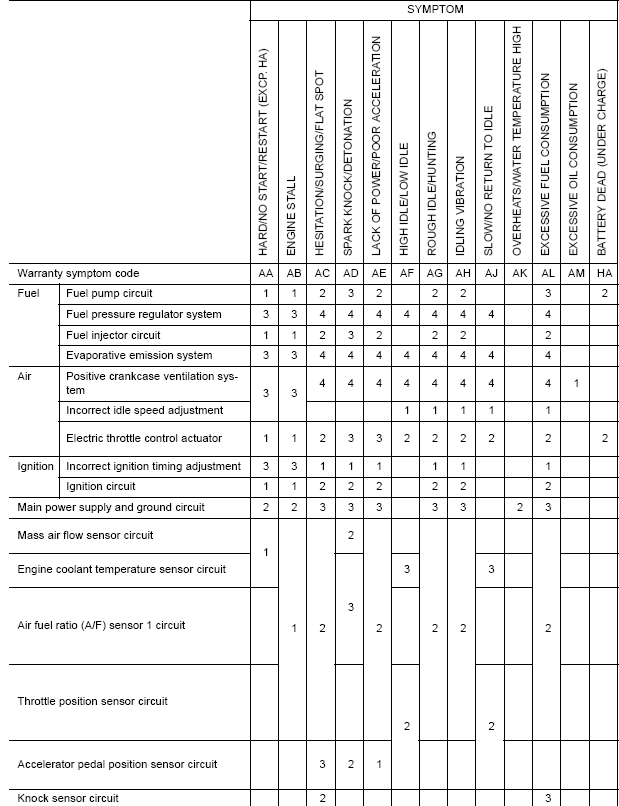

Fig 1: Symptom Chart - Basic Engine Control System (1 Of 2)
G05733619Courtesy of NISSAN MOTOR CO., U.S.A.

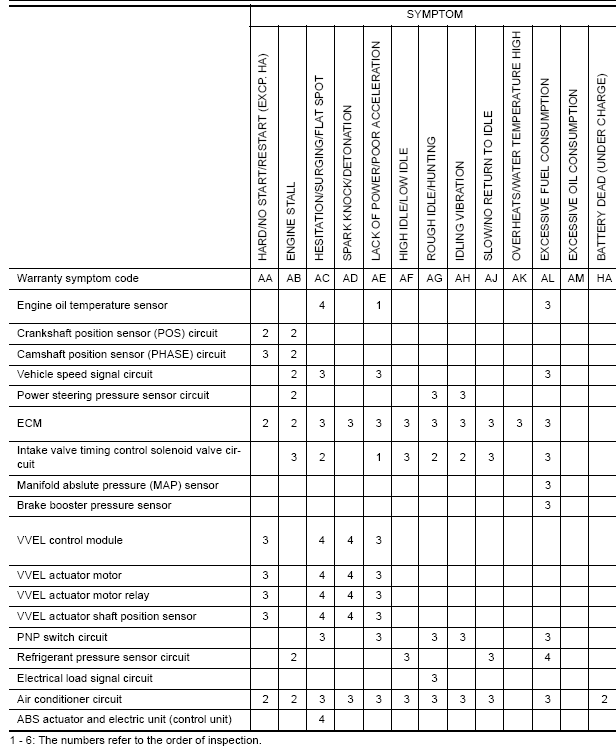

Fig 2: Symptom Chart - Basic Engine Control System (2 Of 2)
G05733620Courtesy of NISSAN MOTOR CO., U.S.A.
