Exploded View

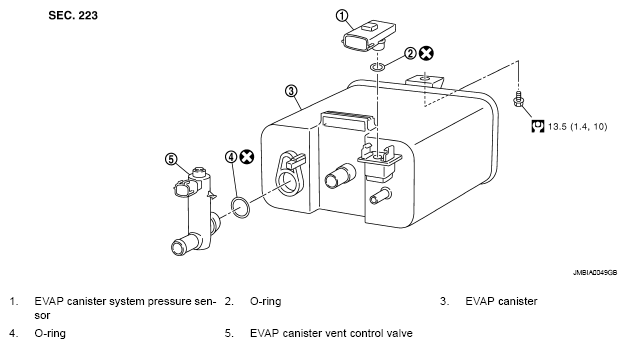

Fig 1: Exploded View Of EVAP Canister
G05733647Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES " for symbols not described on the above.
