Wiring Diagram - ENGINE CONTROL SYSTEM -

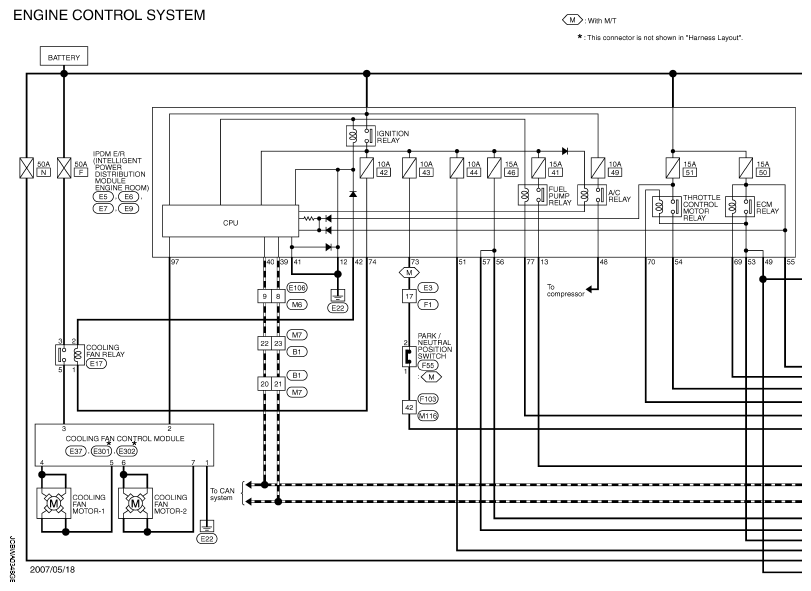

Fig 1: Engine Control System - Wiring Diagram (1 Of 6)
G05733568Courtesy of NISSAN MOTOR CO., U.S.A.

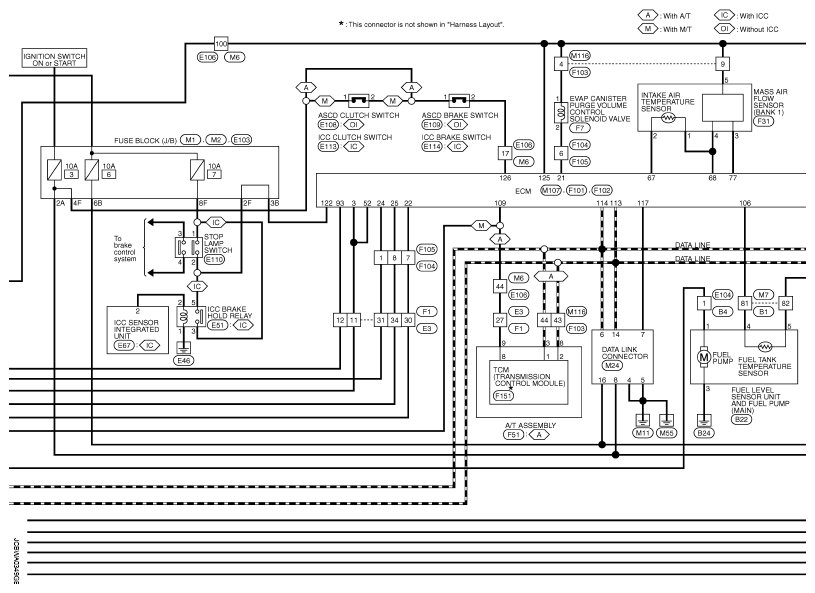

Fig 2: Engine Control System - Wiring Diagram (2 Of 6)
G05733569Courtesy of NISSAN MOTOR CO., U.S.A.

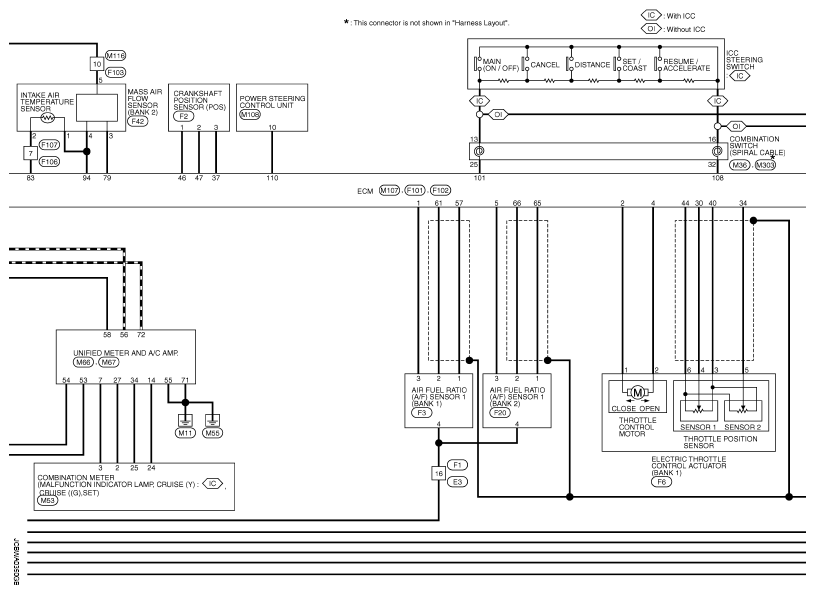

Fig 3: Engine Control System - Wiring Diagram (3 Of 6)
G05733570Courtesy of NISSAN MOTOR CO., U.S.A.

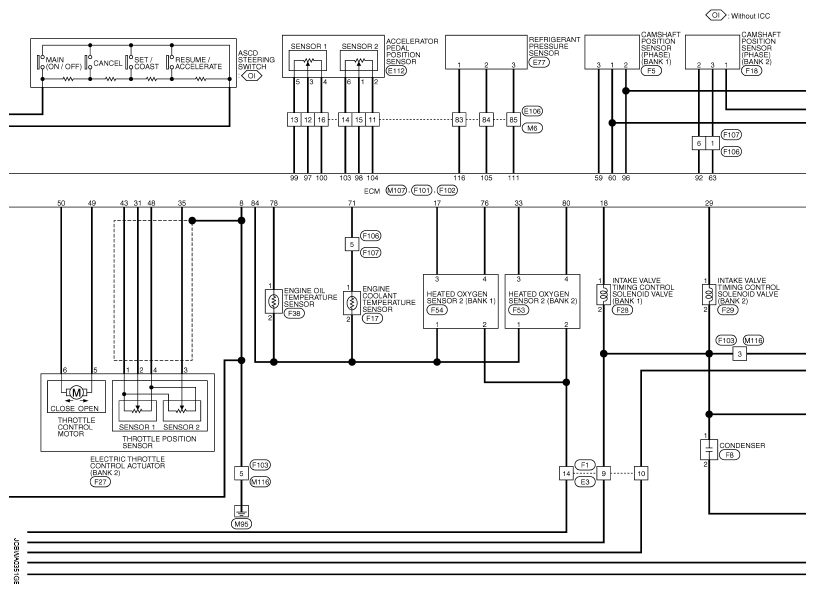

Fig 4: Engine Control System - Wiring Diagram (4 Of 6)
G05733571Courtesy of NISSAN MOTOR CO., U.S.A.

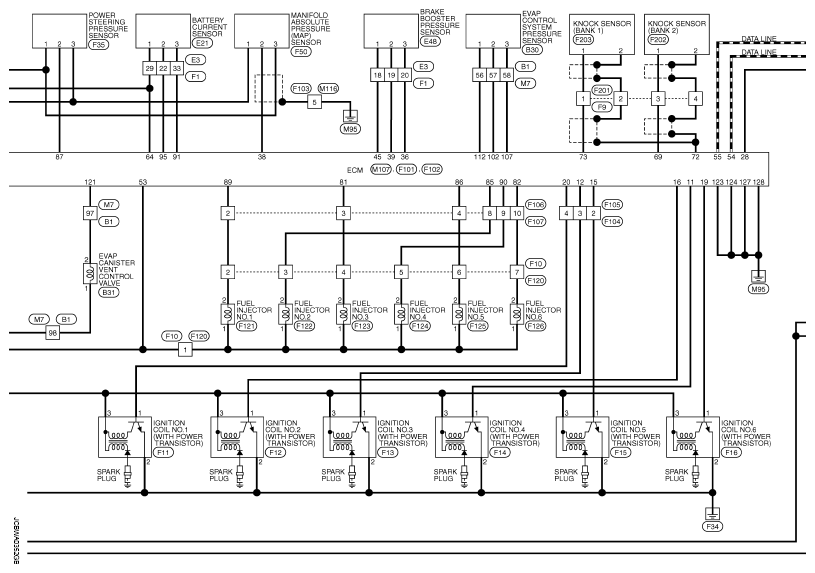

Fig 5: Engine Control System - Wiring Diagram (5 Of 6)
G05733572Courtesy of NISSAN MOTOR CO., U.S.A.

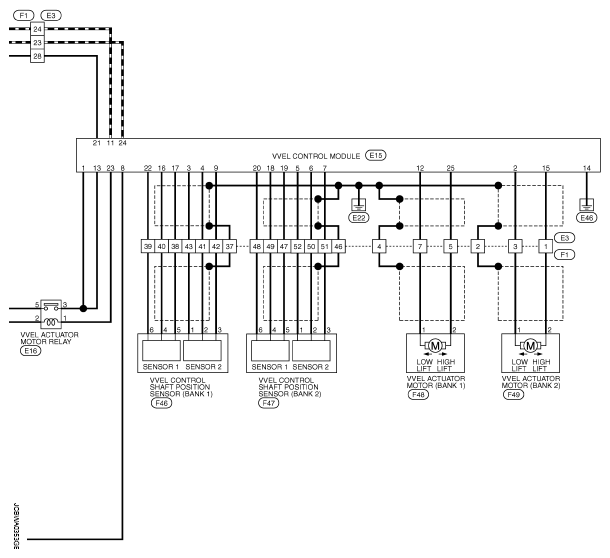

Fig 6: Engine Control System - Wiring Diagram (6 Of 6)
G05733573Courtesy of NISSAN MOTOR CO., U.S.A.

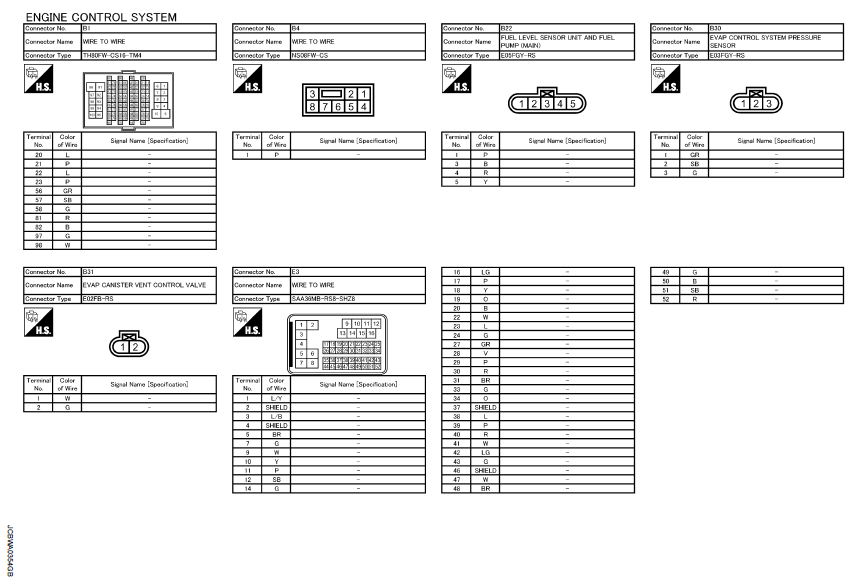

Fig 7: Identifying Engine Control System Connector Terminals (1 Of 14)
G05733574Courtesy of NISSAN MOTOR CO., U.S.A.

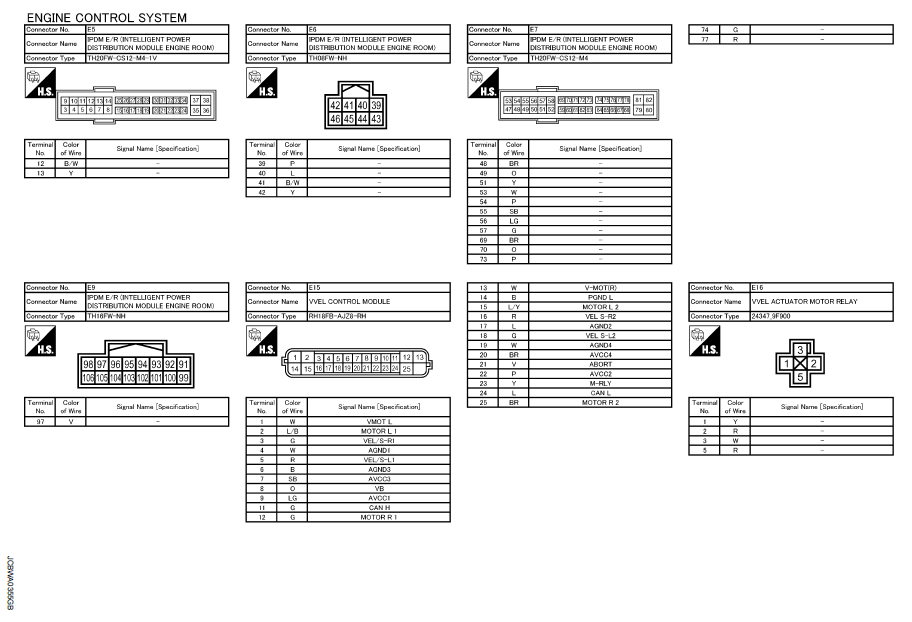

Fig 8: Identifying Engine Control System Connector Terminals (2 Of 14)
G05733575Courtesy of NISSAN MOTOR CO., U.S.A.

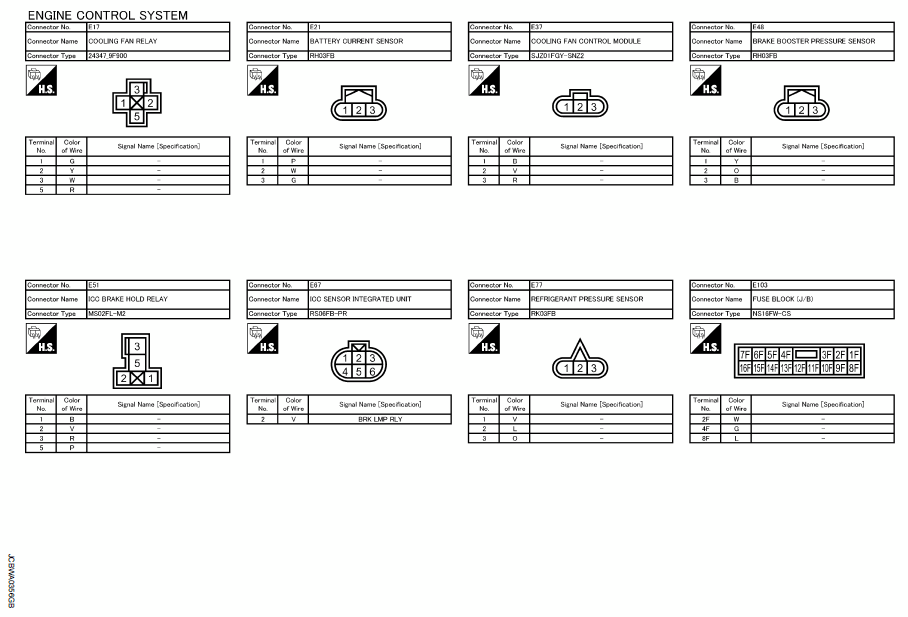

Fig 9: Identifying Engine Control System Connector Terminals (3 Of 14)
G05733576Courtesy of NISSAN MOTOR CO., U.S.A.

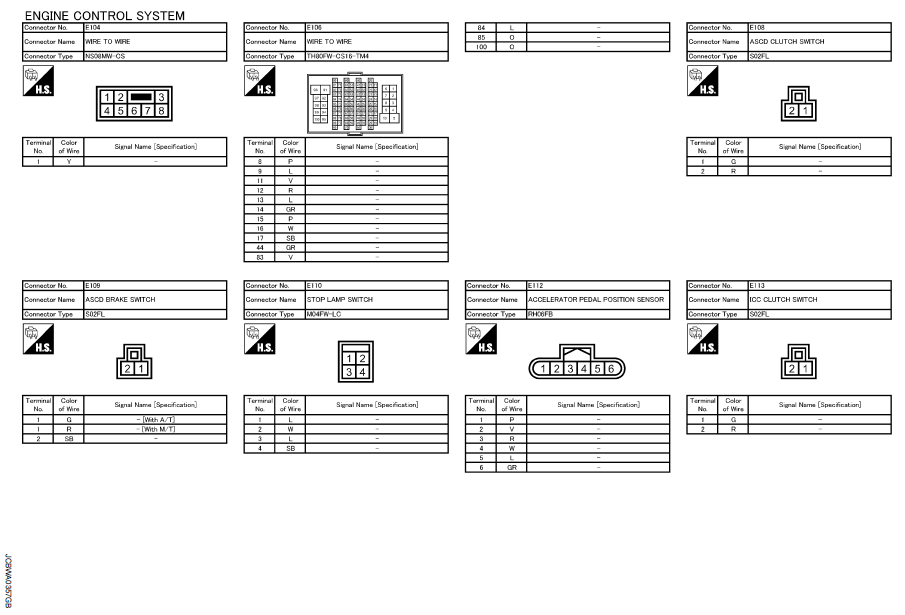

Fig 10: Identifying Engine Control System Connector Terminals (4 Of 14)
G05733577Courtesy of NISSAN MOTOR CO., U.S.A.

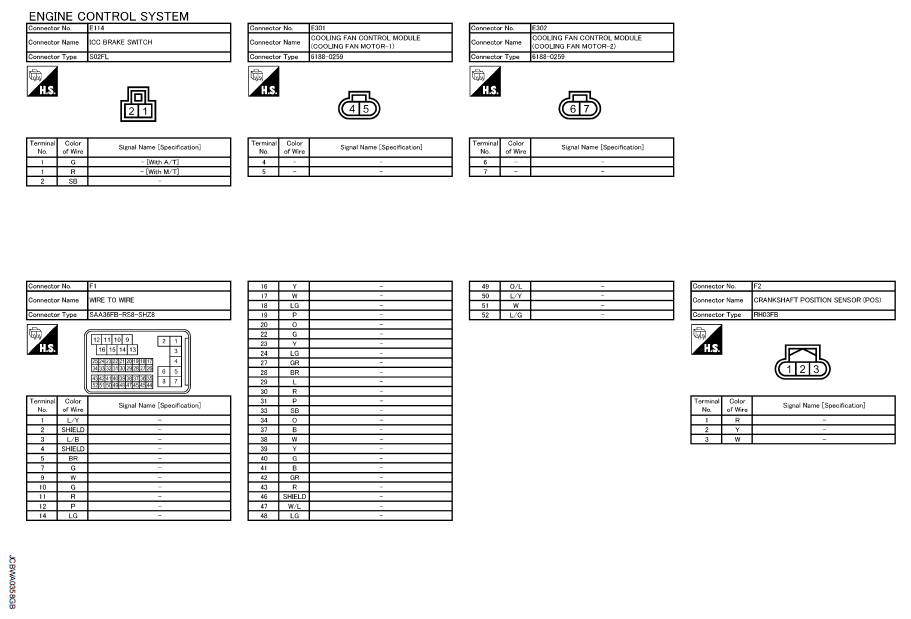

Fig 11: Identifying Engine Control System Connector Terminals (5 Of 14)
G05733578Courtesy of NISSAN MOTOR CO., U.S.A.

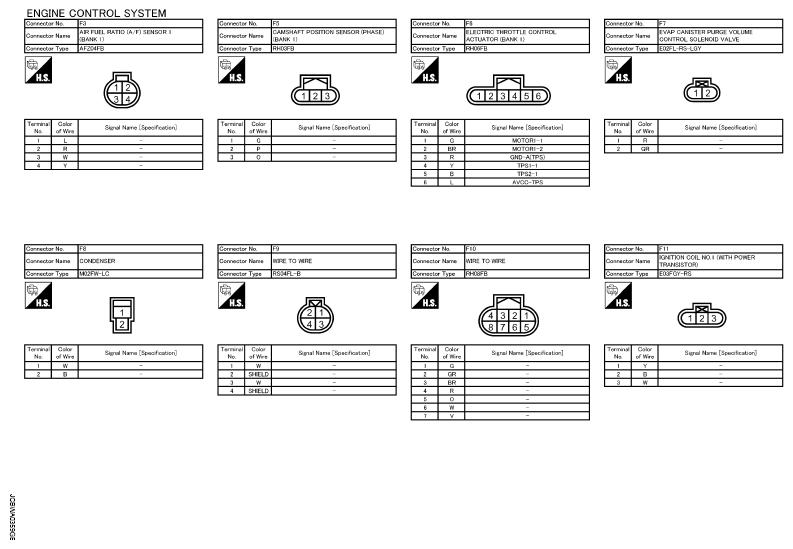

Fig 12: Identifying Engine Control System Connector Terminals (6 Of 14)
G05733579Courtesy of NISSAN MOTOR CO., U.S.A.

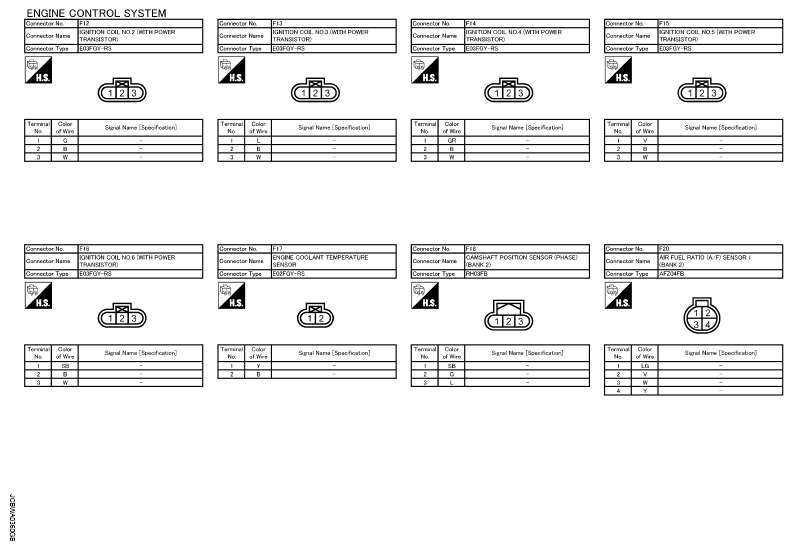

Fig 13: Identifying Engine Control System Connector Terminals (7 Of 14)
G05733580Courtesy of NISSAN MOTOR CO., U.S.A.

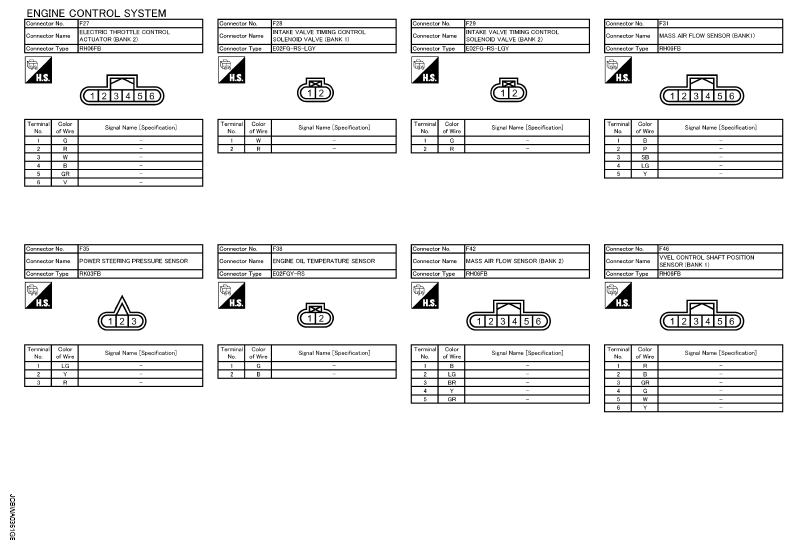

Fig 14: Identifying Engine Control System Connector Terminals (8 Of 14)
G05733581Courtesy of NISSAN MOTOR CO., U.S.A.

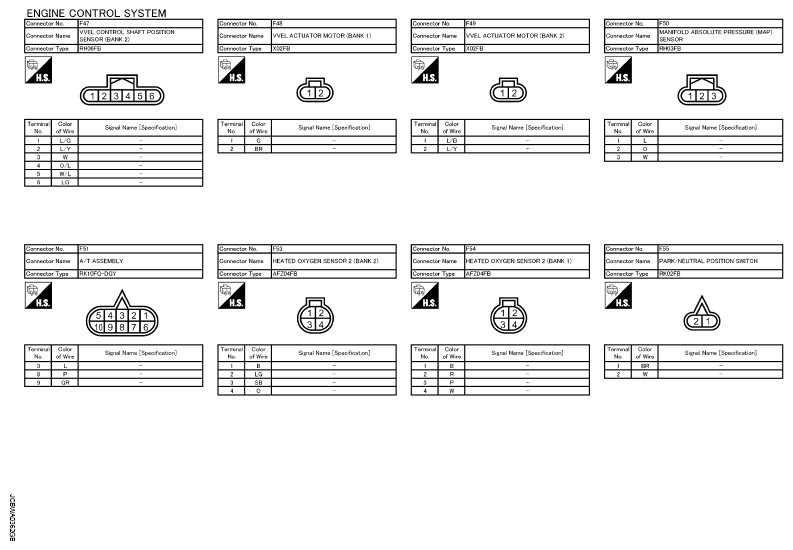

Fig 15: Identifying Engine Control System Connector Terminals (9 Of 14)
G05733582Courtesy of NISSAN MOTOR CO., U.S.A.

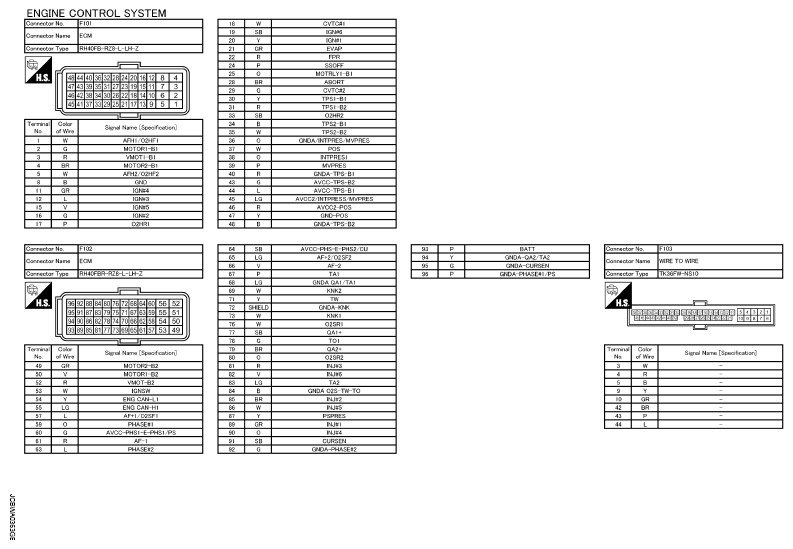

Fig 16: Identifying Engine Control System Connector Terminals (10 Of 14)
G05733583Courtesy of NISSAN MOTOR CO., U.S.A.

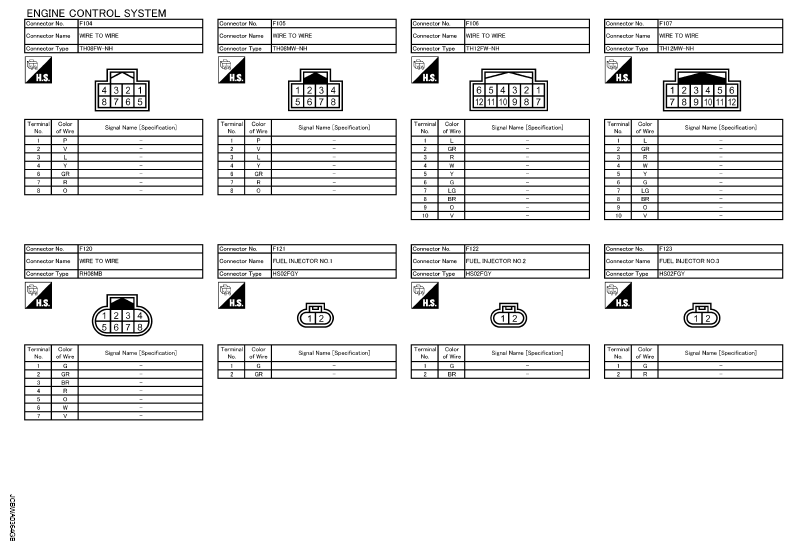

Fig 17: Identifying Engine Control System Connector Terminals (11 Of 14)
G05733584Courtesy of NISSAN MOTOR CO., U.S.A.

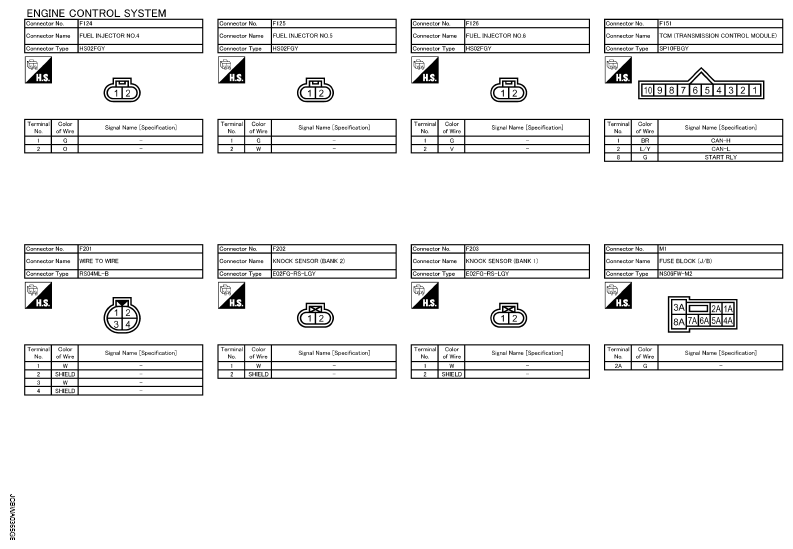

Fig 18: Identifying Engine Control System Connector Terminals (12 Of 14)
G05733585Courtesy of NISSAN MOTOR CO., U.S.A.

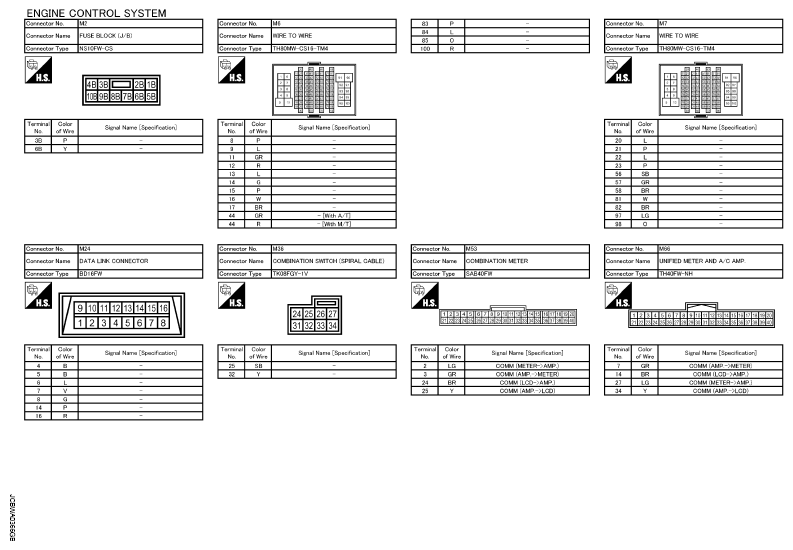

Fig 19: Identifying Engine Control System Connector Terminals (13 Of 14)
G05733586Courtesy of NISSAN MOTOR CO., U.S.A.

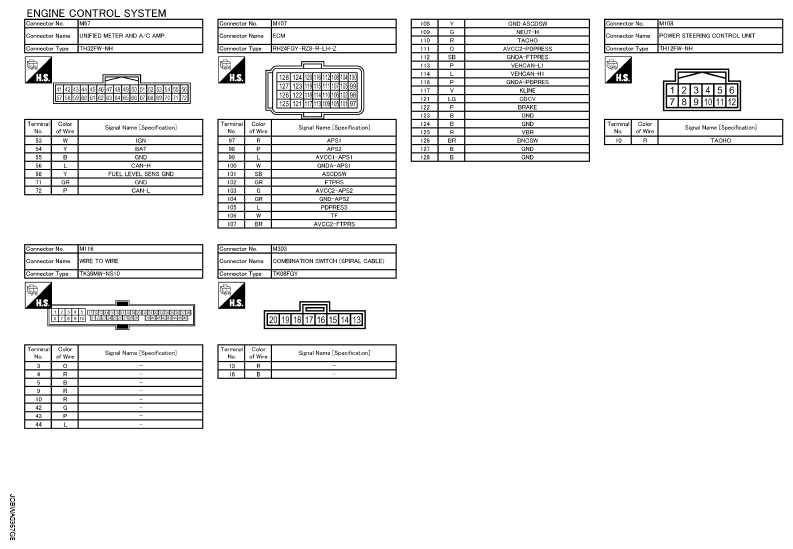

Fig 20: Identifying Engine Control System Connector Terminals (14 Of 14)
G05733587Courtesy of NISSAN MOTOR CO., U.S.A.
