SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence on the next page.

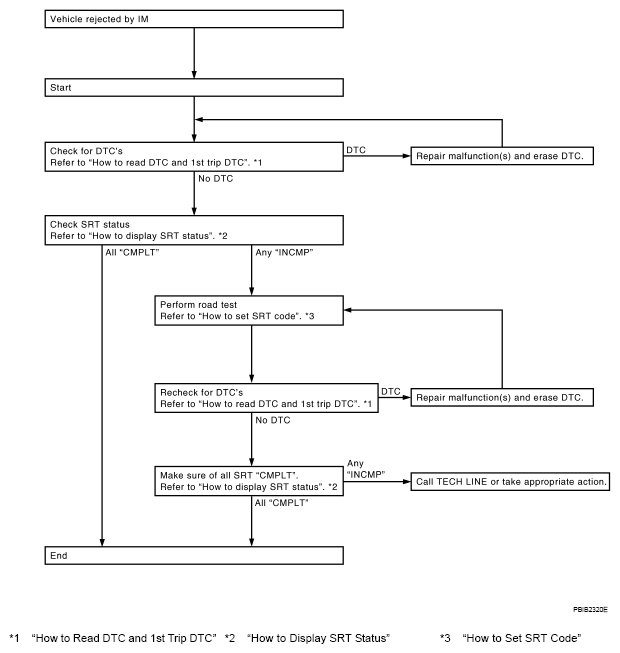

Fig 1: SRT Service Procedure Flow Chart
G05733364Courtesy of NISSAN MOTOR CO., U.S.A.
