Infiniti
>>
2008
>>
G37 Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
On-Vehicle Repair
>>
Sunroof Unit Assembly
>>
Exploded View
>>
Removal
Exploded View: Removal

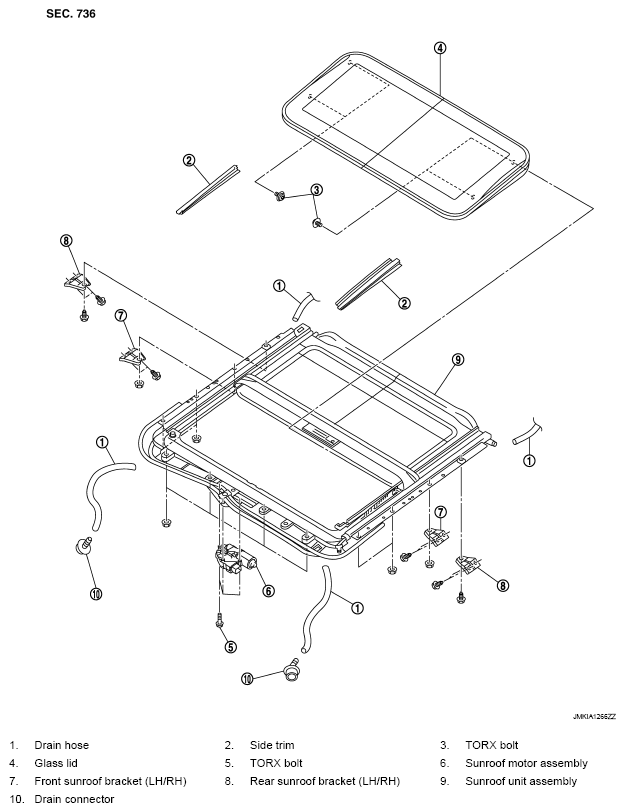

Fig 1: Identifying Sunroof Unit Assembly Components (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
