Section 29 (Seats)
>>
On-Vehicle Repair
>>
Third Seat
>>
Power Folding
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

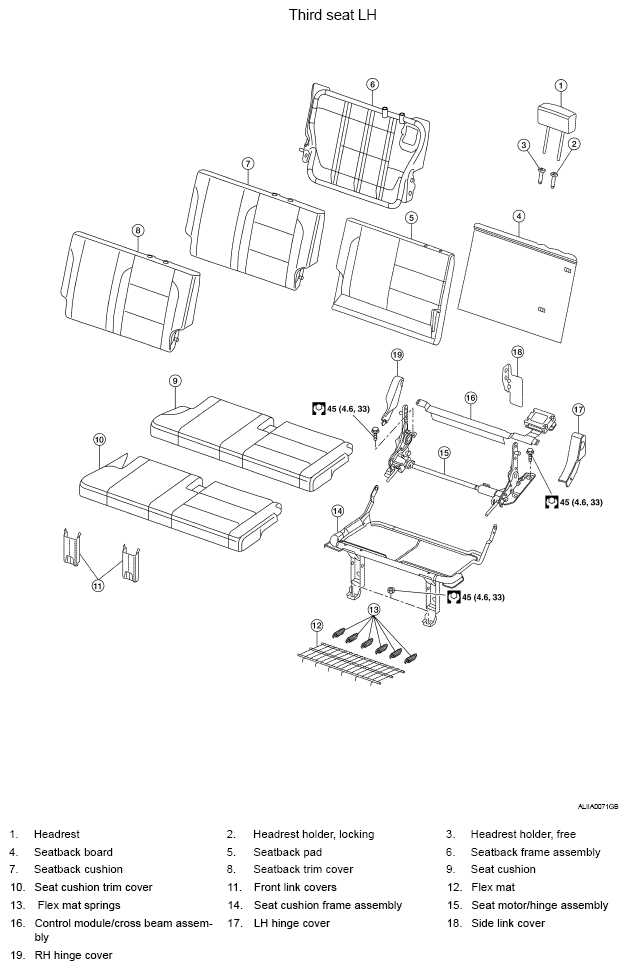

Fig 1: Exploded View Of Power Folding (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

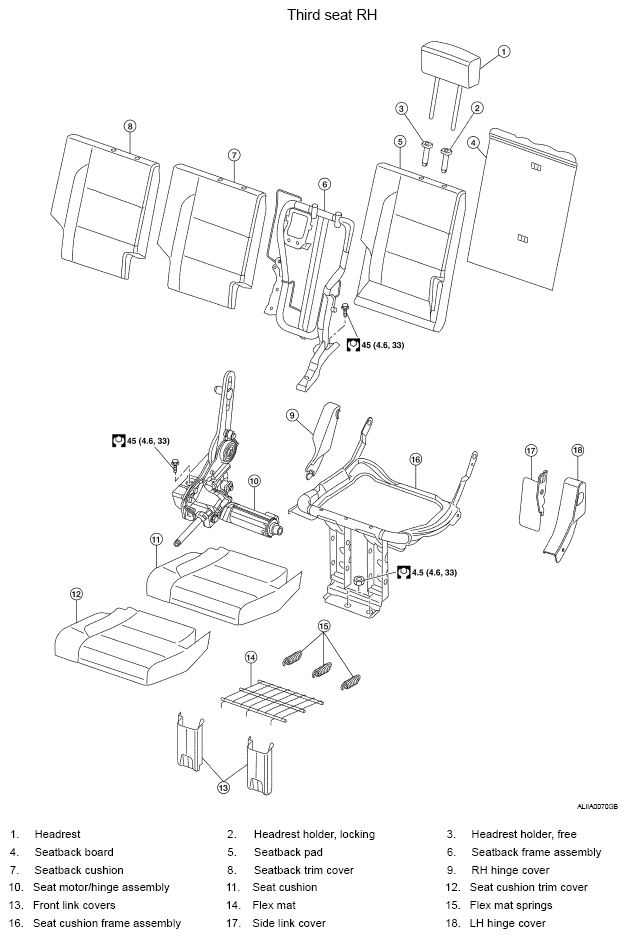

Fig 2: Exploded View Of Power Folding (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
