Section 27 (Heater & Air Conditioning Control System)
>>
Function Diagnosis
>>
Automatic Air Conditioner System
>>
Switches And Their Control Function (Front)
Switches And Their Control Function (Front)
WARNING:
This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Switches And Their Control Function (Front) Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

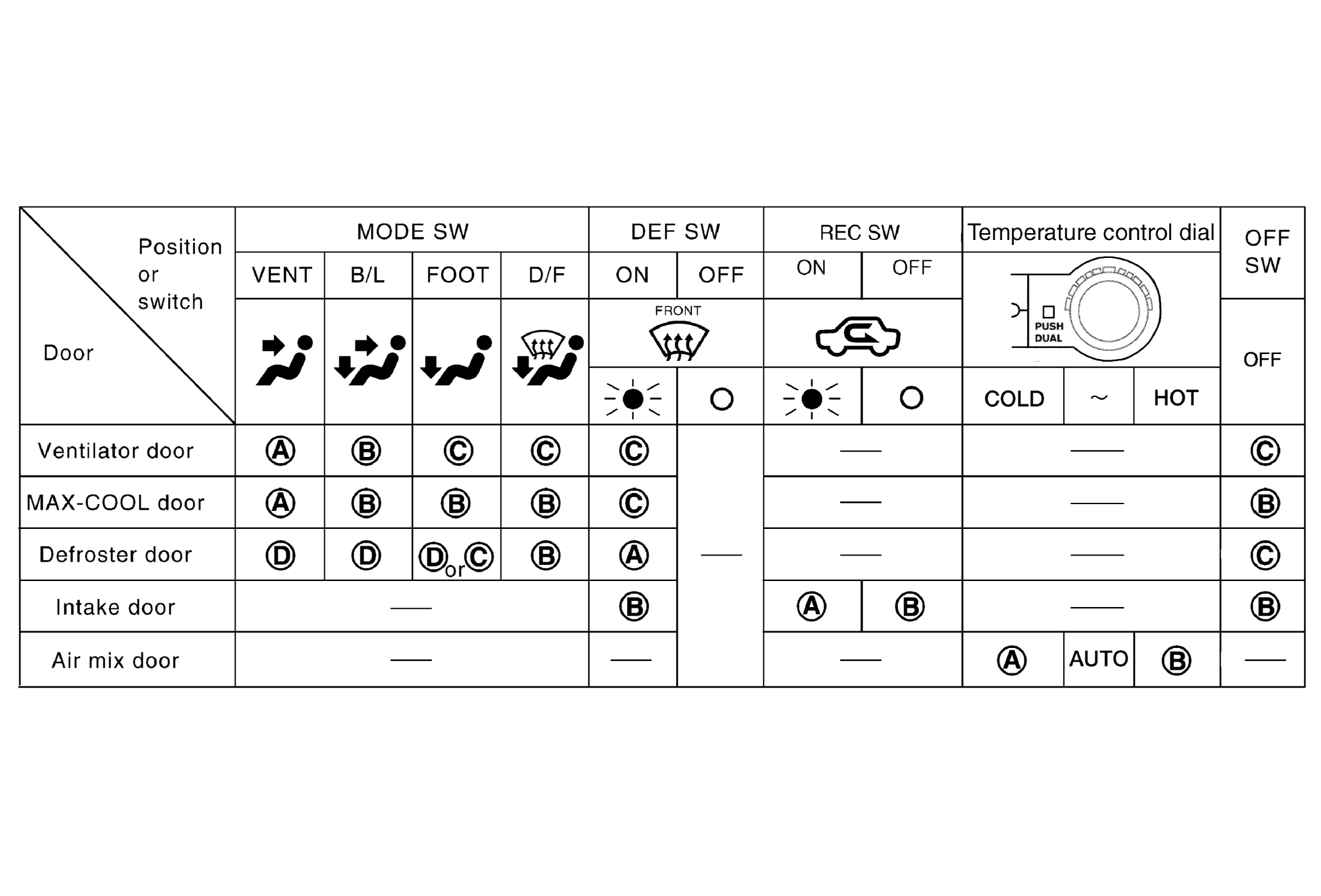

Fig 2: Switch Position And Control Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
