Control System
WARNING: This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
The control system consists of input sensors, switches, the A/C auto amp.(microcomputer) and outputs.

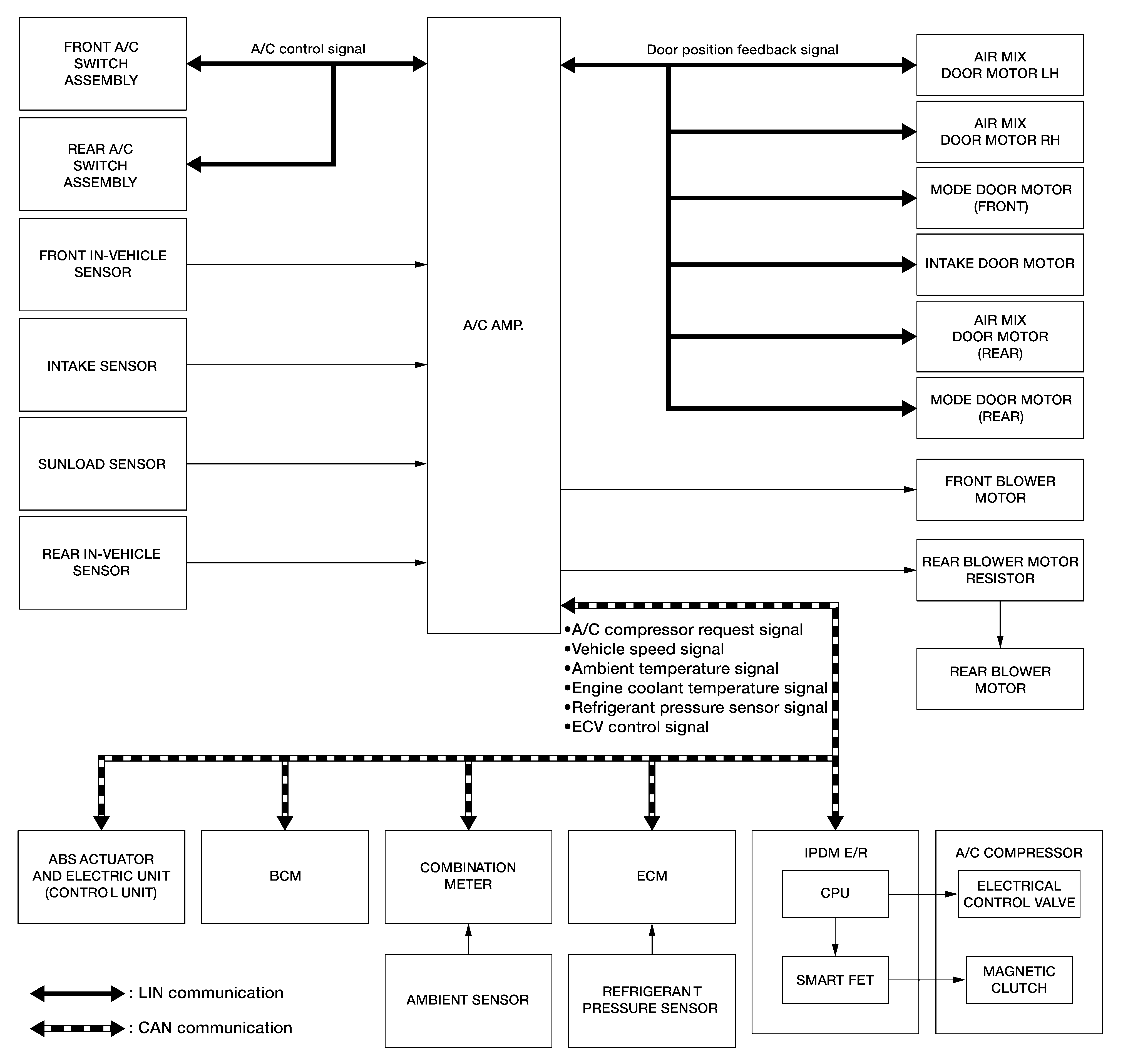

The relationship of these components is shown in the figure below:
Courtesy of NISSAN MOTOR CO., U.S.A.
