Component Inspection
WARNING: This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

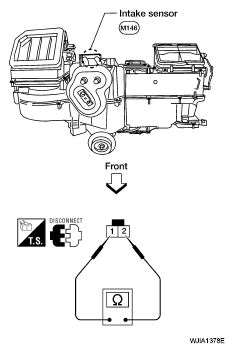

Intake Sensor
After disconnecting intake sensor connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table below.
TEMPERATURE RESISTANCE SPECIFICATION
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 209.0 |
| -10 (14) | 160.0 |
| -5 (23) | 123.0 |
| 0 (32) | 95.8 |
| 5 (41) | 74.9 |
| 10 (50) | 58.9 |
| 15 (59) | 46.7 |
| 20 (68) | 37.3 |
| 25 (77) | 30.0 |
| 30 (86) | 24.2 |
| 35 (95) | 19.7 |
| 40 (104) | 16.1 |
| 45 (113) | 13.2 |
If NG, replace intake sensor. Refer to "REMOVAL AND INSTALLATION ".
