Quick Connector

CAUTION:

After connecting fuel tube quick connectors, make sure quick connectors are secure.
Ensure that connector and resin tube do not contact any adjacent parts.

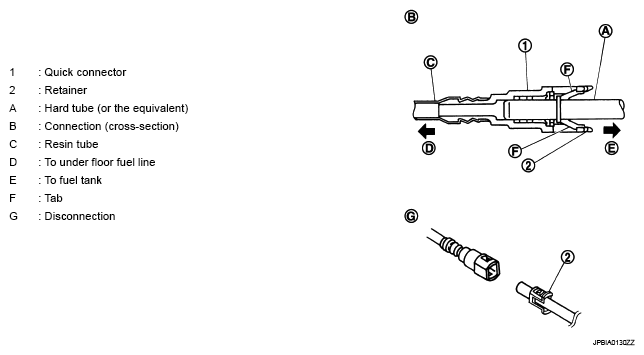

Fig 1: Identifying Quick Connector Fitting

Courtesy of NISSAN MOTOR CO., U.S.A.
