Parking Components: 2WD: Removal

Drain ATF through drain plug.
Remove exhaust front tube and center muffler with power tool. Refer to "EXPLODED VIEW ".
Remove rear propeller shaft. Refer to "EXPLODED VIEW ".
Remove control rod. Refer to , "2WD : EXPLODED VIEW ".
Support A/T assembly with a transmission jack.
CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.
Remove rear engine mounting member with power tool. Refer to "2WD: EXPLODED VIEW ".
Remove engine mounting insulator (rear). Refer to "2WD : EXPLODED VIEW ".
Remove tightening bolts for rear extension assembly and transmission case.

Fig 1: Identifying Rear Extension Assembly And Transmission Case Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

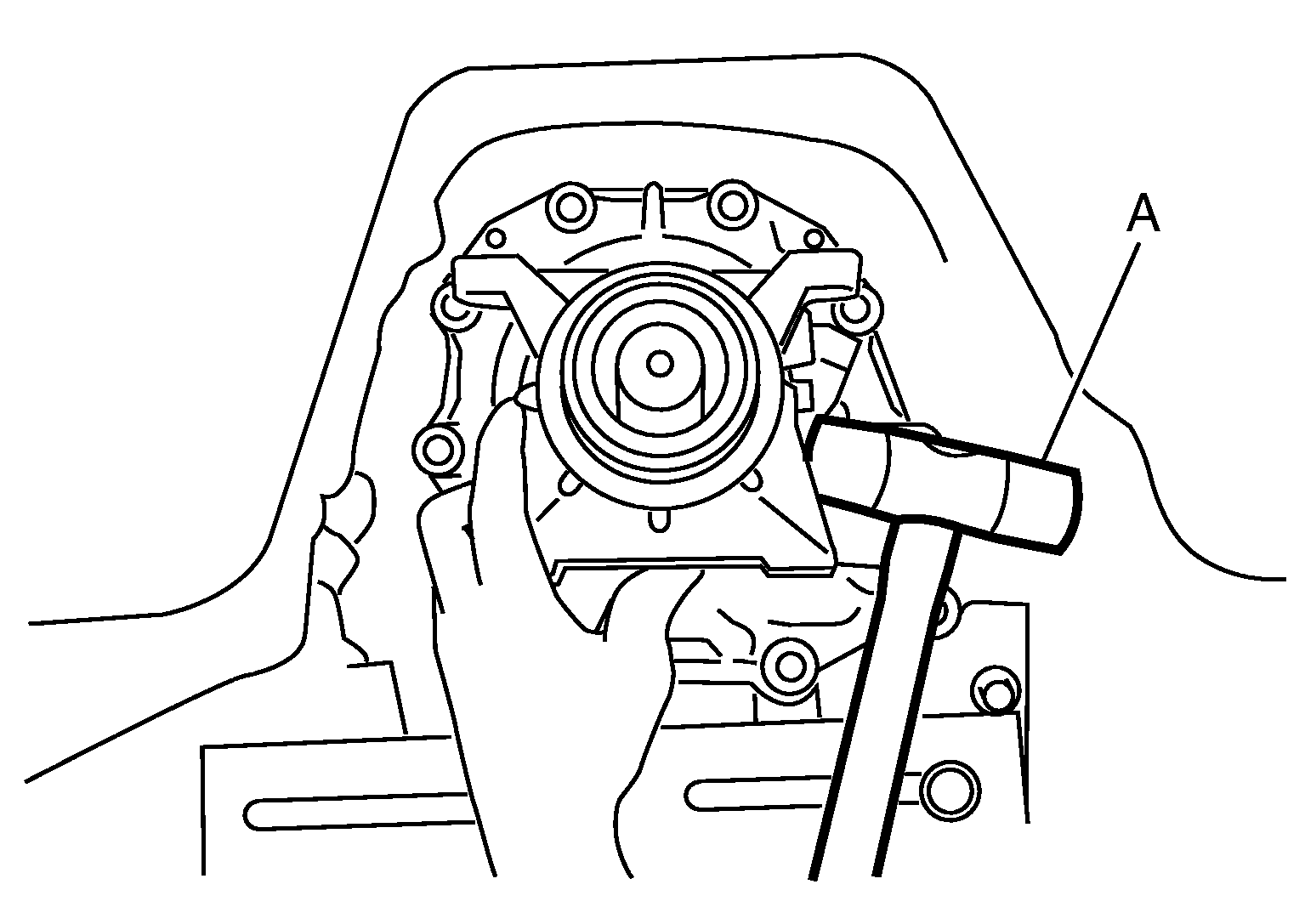

Tap rear extension assembly with a soft hammer (A).

Fig 2: Tapping Rear Extension Assembly With Soft Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear extension assembly (with needle bearing) from transmission case.

Fig 3: Removing Rear Extension Assembly From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

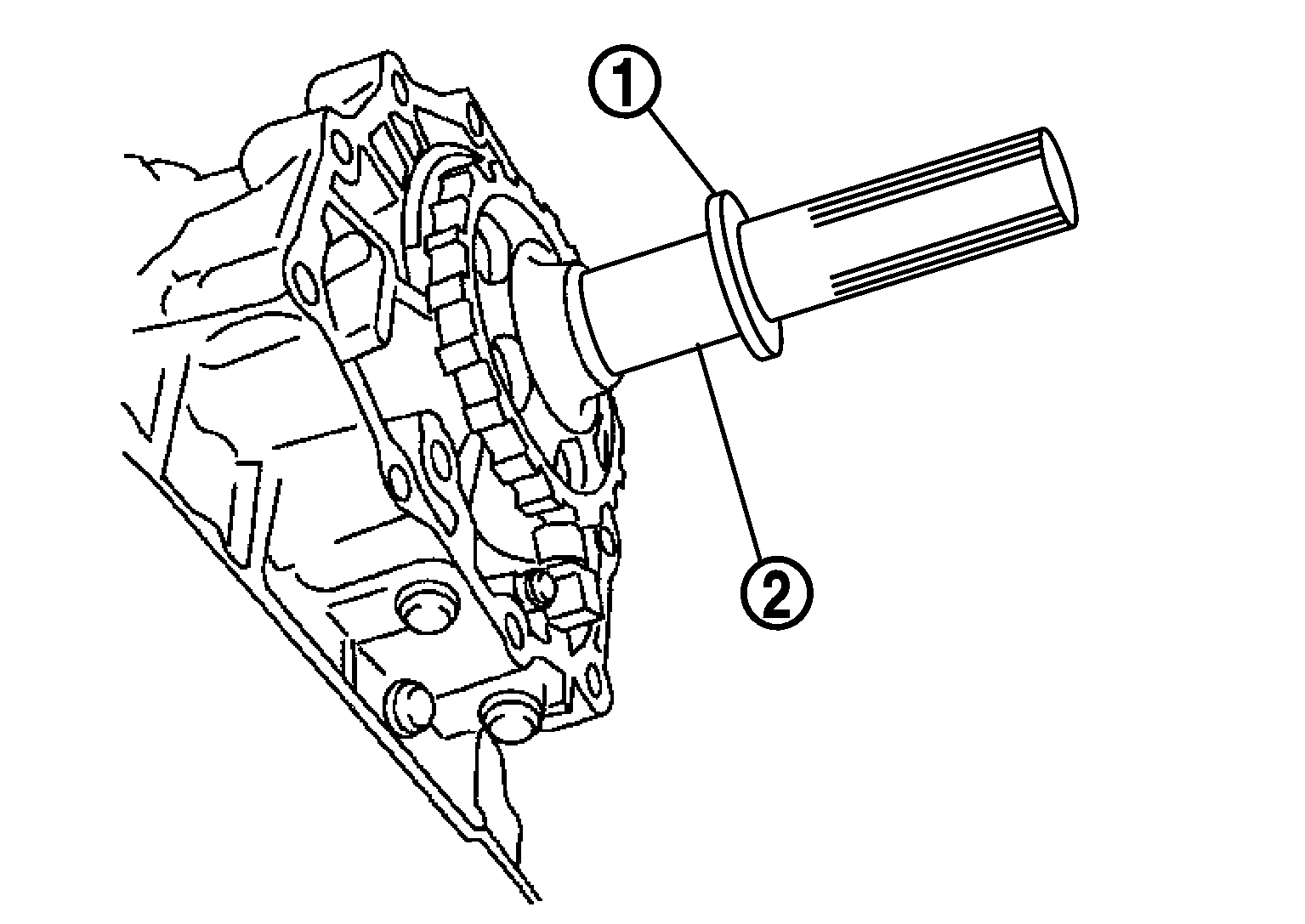

Remove bearing race (1) from output shaft (2).

Fig 4: Identifying Bearing Race And Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove output shaft (1) from transmission case by rotating left/right.

Fig 5: Removing Output Shaft From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

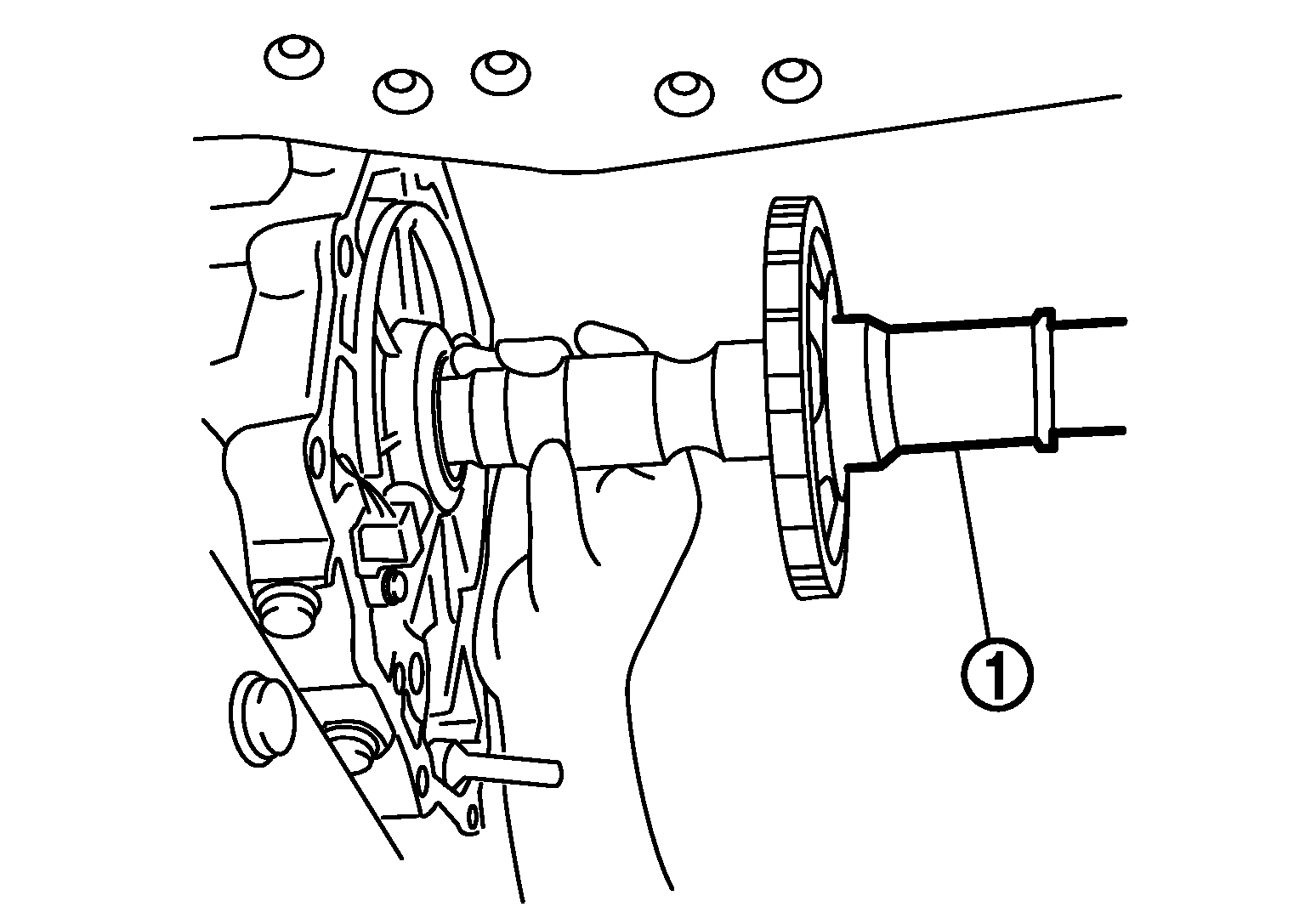

Remove parking gear (1) from output shaft (2).

Fig 6: Removing Parking Gear From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings (1) from output shaft.

Fig 7: Identifying Output Shaft Seal Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (1) from rear extension.

Fig 8: Identifying Rear Extension Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

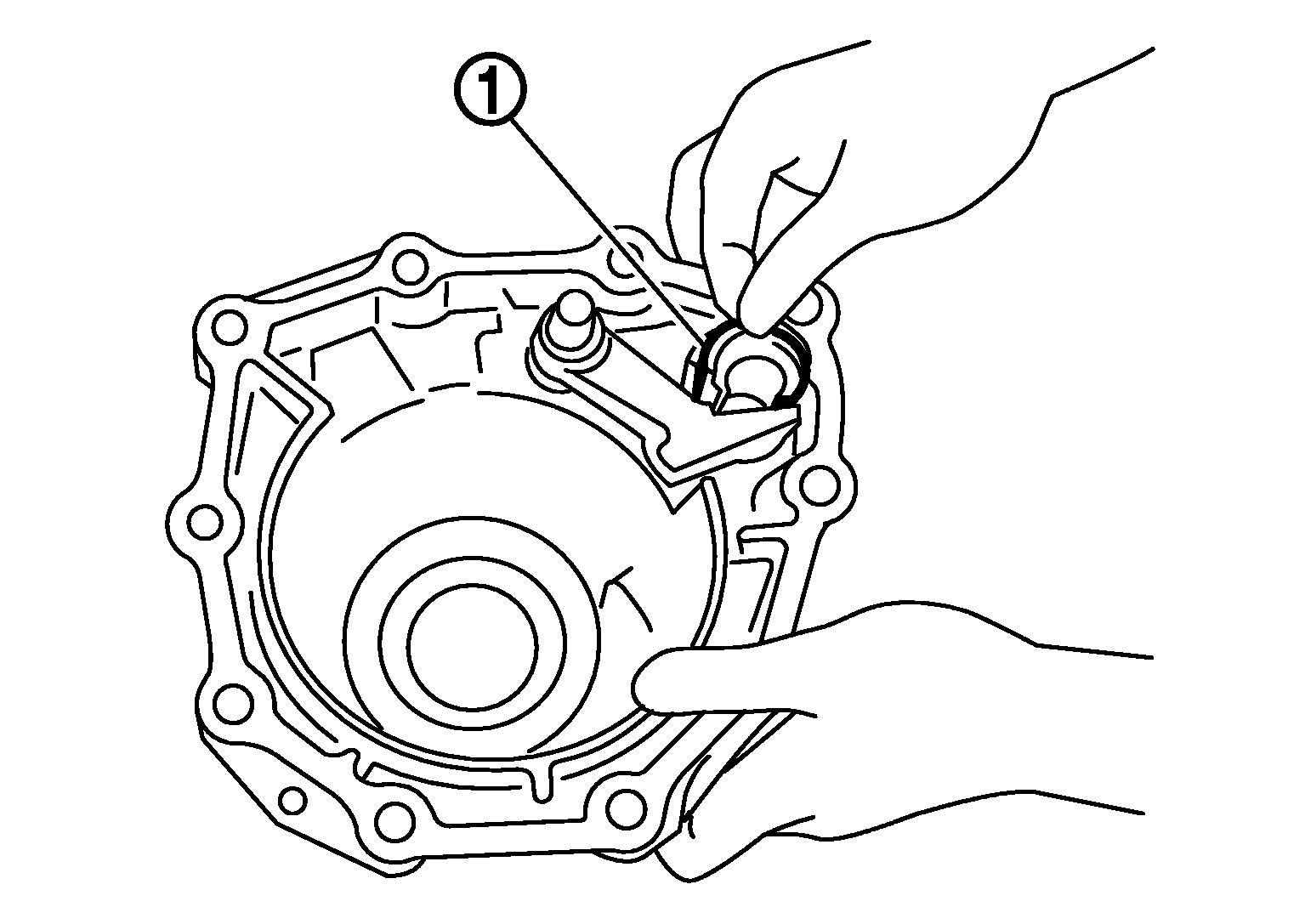

Remove parking actuator support (1) from rear extension.

Fig 9: Removing Parking Actuator Support From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.

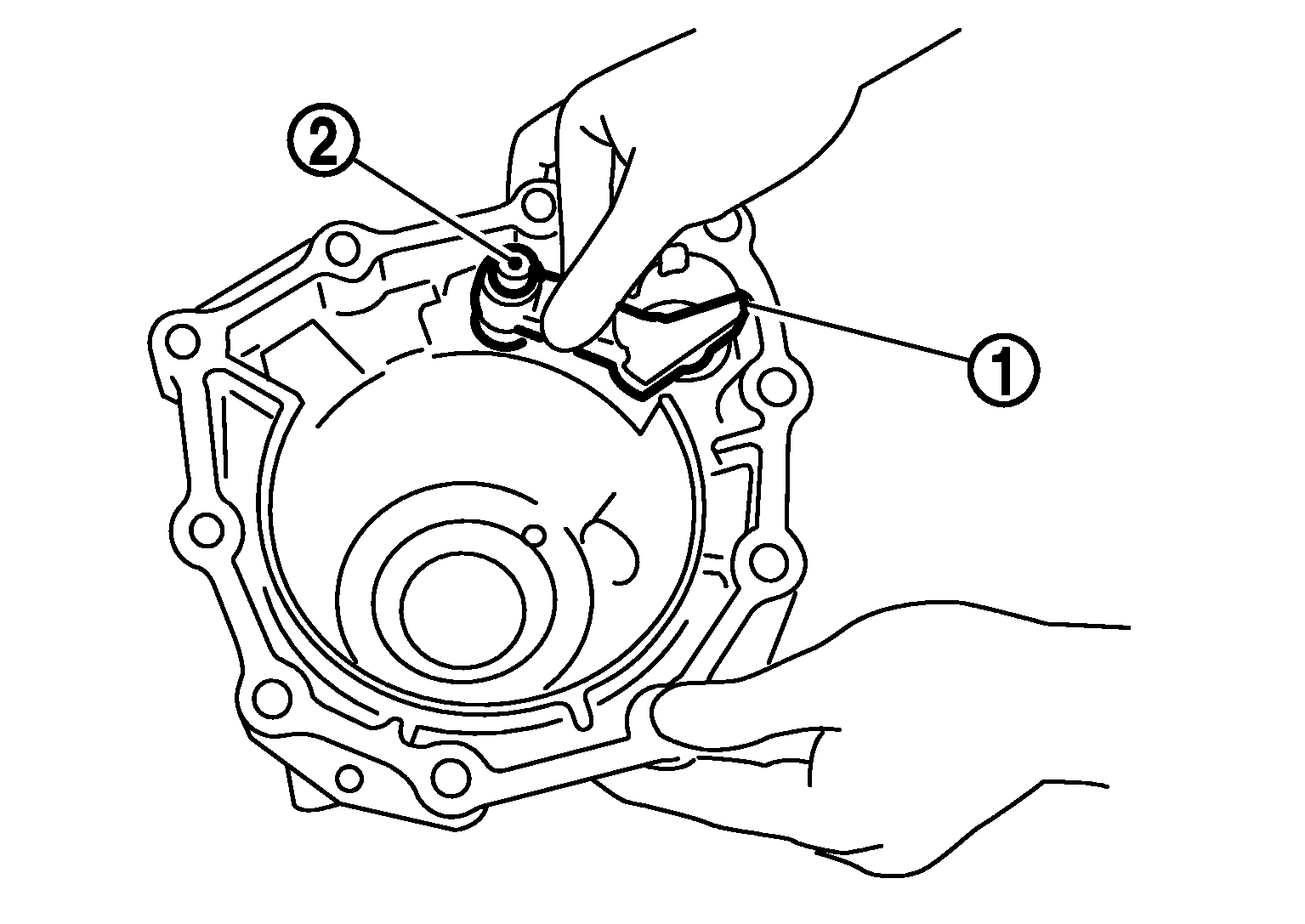

Remove parking pawl (with return spring) (1) and pawl shaft (2) from rear extension.

Fig 10: Removing Parking Pawl And Pawl Shaft From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring (1) from parking pawl (2).

Fig 11: Identifying Parking Pawl Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear oil seal (1) from rear extension using flat-blade screwdriver (A).
CAUTION: Be careful not to scratch rear extension.

Fig 12: Removing Rear Oil Seal From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
