Parking Components: 2WD: Installation

As shown in the figure, use a drift [SST: ST33400001 (J-26082)] (A) to drive rear oil seal into the rear extension until it is flush.
CAUTION:
- Do not reuse rear oil seal.
- Apply ATF to rear oil seal.

  Fig 1: Installing Rear Oil Seal Into Rear Extension
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring (1) to parking pawl (2).

Fig 2: Identifying Parking Pawl Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl (with return spring) (1) and pawl shaft (2) to rear extension.

Fig 3: Installing Parking Pawl And Pawl Shaft To Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support (1) to rear extension.

Fig 4: Installing Parking Actuator Support To Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bearing (1) to rear extension.
CAUTION: Take care with the direction of needle bearing. Refer to , "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".

Fig 5: Identifying Rear Extension Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install seal rings (1) to output shaft.

Fig 6: Identifying Output Shaft Seal Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking gear (1) to output shaft (2).

Fig 7: Installing Parking Gear To Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install output shaft (1) in transmission case.

Fig 8: Installing Output Shaft In Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bearing race (1) to output shaft (2).

Fig 9: Identifying Bearing Race And Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

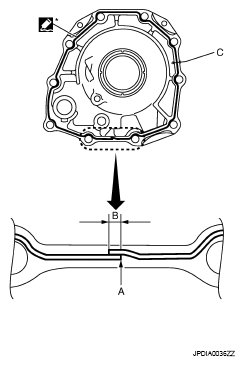

Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
1. Start and finish point shall be in the center of two bolts .
2. 3 - 5 mm (0.12 - 0.20 in)
Sealant width (C) : 1.0 - 2.0 mm (0.04 - 0.08 in)

Sealant height (C) : 0.4 - 1.0 mm (0.016 - 0.04 in)

CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.

Fig 10: Identifying Sealant Applying Area Of Rear Extension Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear extension assembly (with needle bearing) to transmission case.
CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

Fig 11: Installing Rear Extension Assembly To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten rear extension assembly bolts to the specified torque.
Install engine mounting insulator (rear). Refer to "2WD : EXPLODED VIEW ".
Install rear engine mounting member. Refer to "2WD : EXPLODED VIEW ".
Install control rod. Refer to , "2WD : EXPLODED VIEW ".
Install rear propeller shaft. Refer to "EXPLODED VIEW ".

Fig 12: Identifying Rear Extension Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install exhaust front tube and center muffler. Refer to "EXPLODED VIEW ".
Install drain plug to oil pan. Tighten a necessary drain plug with specified torque. Refer to , "EXPLODED VIEW ".
CAUTION: Do not reuse drain plug gasket.
Pour ATF into A/T assembly. Refer to , "CHANGING ".
