Removal and Installation: Installation

  1. Connect TCM connector (A) and park/neutral position switch connector (B).
    Fig 1: Identifying TCM Connector And Park/Neutral Position Switch Connector
    G05218618Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install A/T assembly harness connector (A) to control valve with TCM.
    Fig 2: Installing A/T Assembly Harness Connector To Control Valve
    G05218619Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Connect TCM connectors (A) and (B).
    Fig 3: Identifying TCM Connectors
    G05218620Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install new O-ring (1) in A/T assembly harness connector (A).
    Fig 4: Identifying O-Ring And A/T Assembly Harness Connector
    G05218621Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install bracket (1) to A/T fluid temperature sensor 2 (2).
    Fig 5: Removing/Installing Bracket From A/T Fluid Temperature Sensor 2
    G05218622Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install A/T fluid temperature sensor 2 (1) with bracket (2) in control valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to the specified torque.

    (Bold Arrow) ← : Bolt

    CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.
    Fig 6: Identifying A/T Fluid Temperature Sensor 2 And Bracket
    G05218623Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install control valve with TCM in transmission case.
    CAUTION:
    • Make sure that turbine revolution sensor securely installs turbine revolution sensor hole (B).

      A : Brake band

    • Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
    • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
      Fig 7: Identifying Turbine Revolution Sensor Hole And Brake Band
      G05218624Courtesy of NISSAN MOTOR CO., U.S.A.
    • Assemble it so that manual valve (1) cutout is engaged with manual plate (2) projection.
      Fig 8: Engaging Manual Valve With Manual Plate Projection
      G05218625Courtesy of NISSAN MOTOR CO., U.S.A.

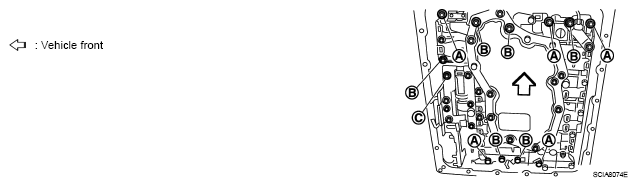

  8. Install bolts A, B and C in control valve with TCM.

    ← : Vehicle front

    BOLTS SYMBOL AND LENGTH SPECIFICATION

    Bolt symbol Length mm (in) Number of bolts
    A 42 (1.65) 5
    B 55 (2.17) 6
    C 40 (1.57) 1
    Fig 9: Identifying Control Valve Bolts
    G05218626Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 → 2 → 3), and then tighten other bolts. Tighten control valve with TCM bolts to the specified torque.

    ← : Vehicle front

    Fig 10: Identifying Tightening Sequence Of Control Valve Bolts
    G05218627Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect A/T fluid temperature sensor 2 connector (A).
  11. Engage terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips ((Bold Arrow) ←).
    Fig 11: Identifying A/T Fluid Temperature Sensor 2 Connector
    G05218628Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Connect revolution sensor connector (A).
  13. Engage revolution sensor harness with terminal clip ((Bold Arrow) ←).
    Fig 12: Identifying Revolution Sensor Connector
    G05218629Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install magnets (1) in oil pan.
  15. Install oil pan gasket to oil pan.
    CAUTION:
    • Do not reuse oil pan gasket.
    • Install it in the direction to align hole positions.
    • Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
      Fig 13: Identifying Magnets
      G05218630Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install oil pan (2) (with oil pan gasket) and clips (1) to transmission case.

    ← : Vehicle front

    (Bold Arrow) ← : Oil pan mounting bolt

    Fig 14: Locating Oil Pan Mounting Bolts
    G05218631Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Install it so that drain plug (3) comes to the position as shown in the figure.
    • Be careful not to pinch harnesses.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
  17. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.

    ← : Vehicle front

    Fig 15: Identifying Tightening Sequence Of Oil Pan Mounting Bolts
    G05218632Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse oil pan mounting bolts.
  18. Install drain plug to oil pan. Tighten drain plug to the specified torque.
    CAUTION: Do not reuse drain plug gasket.
  19. Pull up A/T assembly harness connector (A).
    CAUTION: Be careful not to damage connector.
    Fig 16: Pulling Up A/T Assembly Harness Connector
    G05218633Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install snap ring (1) to A/T assembly harness connector (A).
  21. Connect A/T assembly harness connector.
    Fig 17: Installing Snap Ring To A/T Assembly Harness Connector
    G05218634Courtesy of NISSAN MOTOR CO., U.S.A.
  22. Install bracket (2) to transmission assembly.

    ← : Vehicle front

    (Bold Arrow) ← : Bolt

  23. Install heated oxygen sensor 2 harness (B) to clips (1).
  24. Connect heated oxygen sensor 2 harness connector (A).
  25. Install exhaust mounting bracket. Refer to "EXPLODED VIEW ".
  26. Pour ATF into A/T assembly. Refer to , "CHANGING ".
  27. Connect the battery cable to the negative terminal.
    Fig 18: Identifying Heated Oxygen Sensor 2 Harness Connectors And Heated Oxygen Sensor 2 Harness
    G05218635Courtesy of NISSAN MOTOR CO., U.S.A.
