Cross-Sectional View
>>
AWD Models
AWD Models

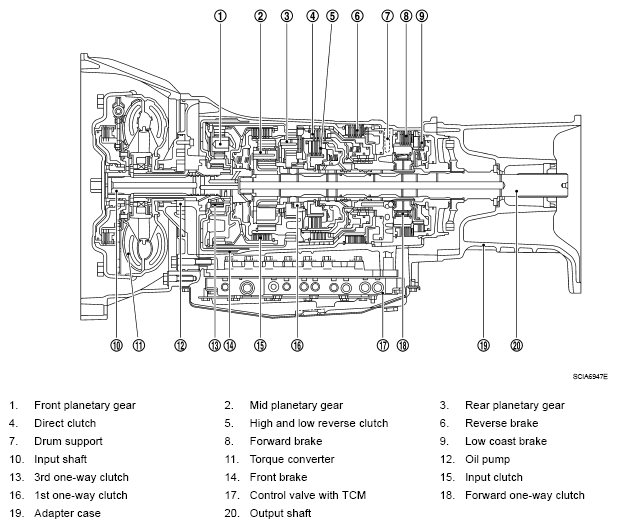

Fig 1: Cross-Sectional View Of A/T Assembly (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
