Component Parts Location

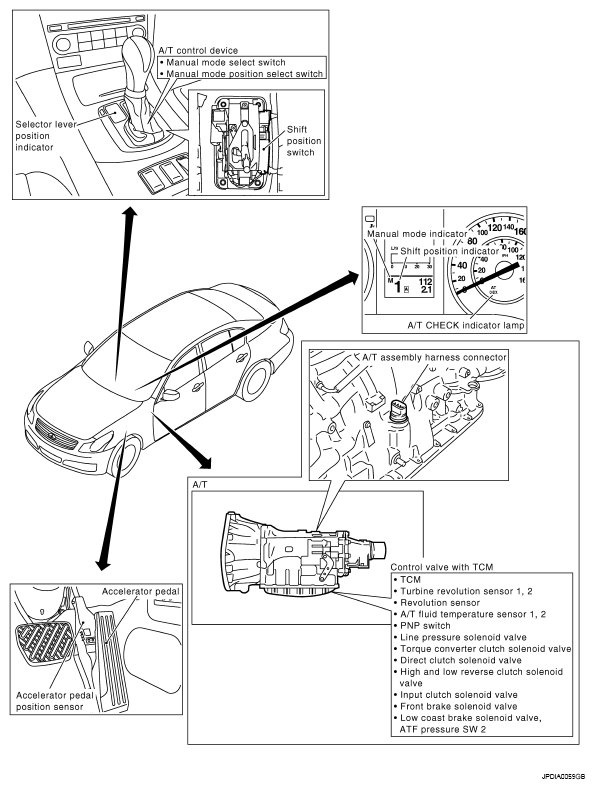

Fig 1: Identifying A/T Control System Components Location - Without Paddle Shifter
G05218528Courtesy of NISSAN MOTOR CO., U.S.A.

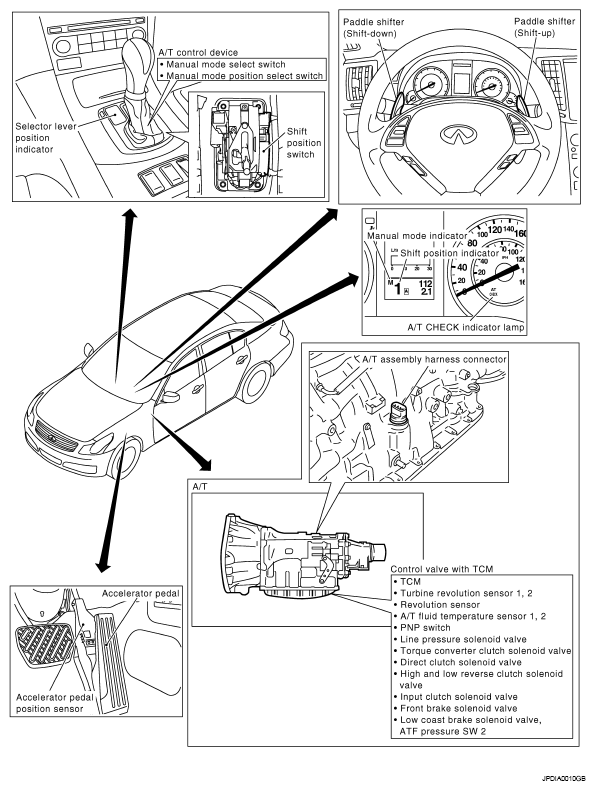

Fig 2: Identifying A/T Control System Components Location - With Paddle Shifter
G05218529Courtesy of NISSAN MOTOR CO., U.S.A.
