Oil Pump: Assembly

Install O-ring to oil pump cover.

Fig 1: Installing O-Ring To Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to oil pump housing.

Fig 2: Installing O-Ring To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.

  Fig 3: Installing Oil Pump Housing Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump housing to oil pump cover.
Tighten bolts ((Bold Arrow) ←) to the specified torque in numerical order shown in the figure after temporarily tightening them.

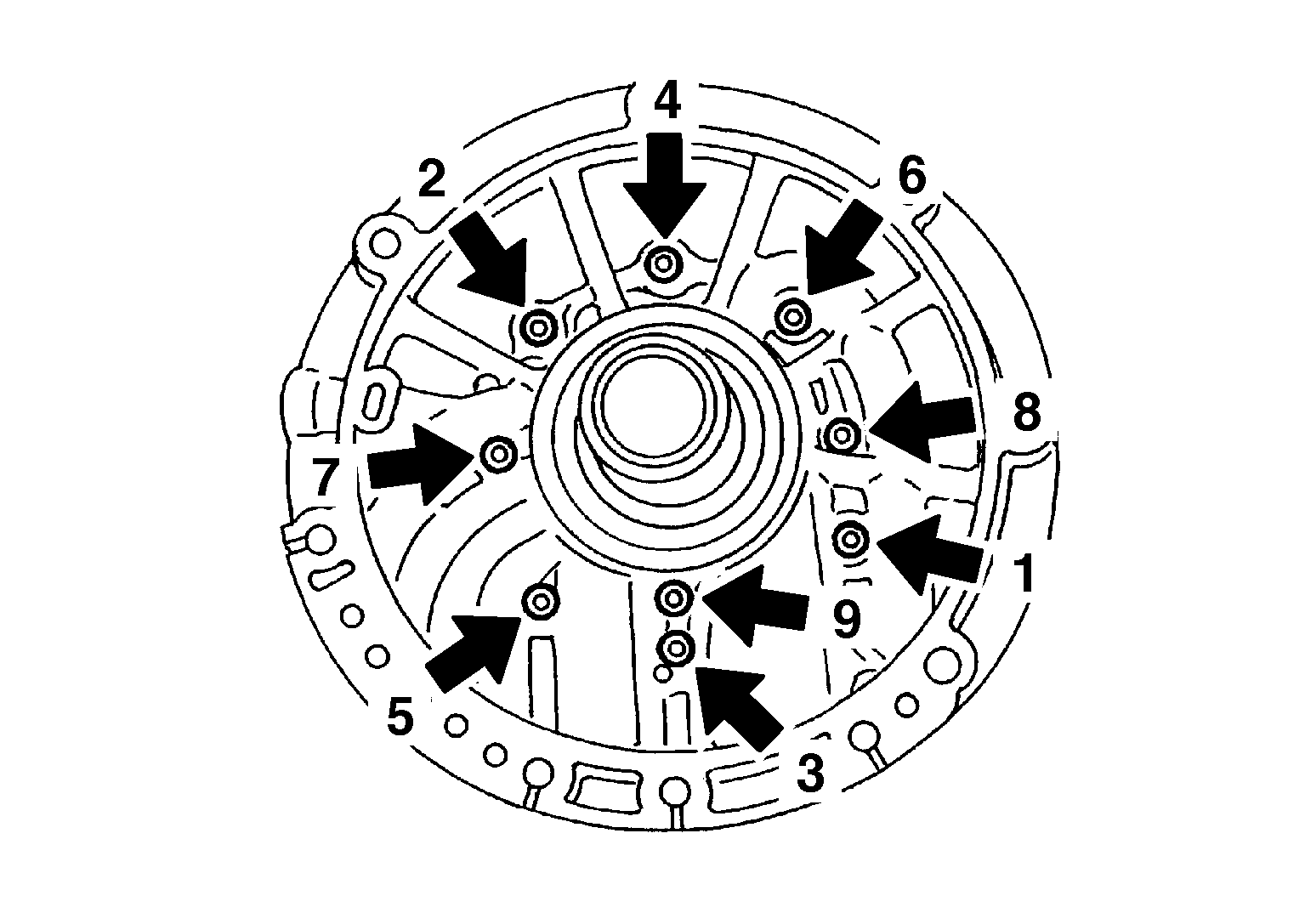

Fig 4: Locating Oil Pump Housing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
