Exploded View

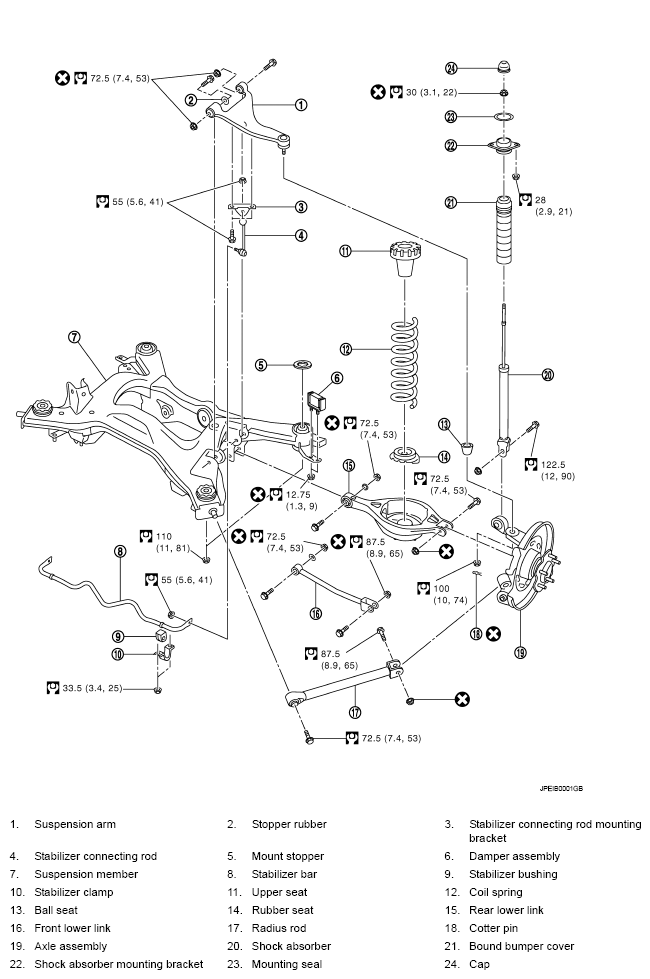

Fig 1: Exploded View Of Rear Suspension Assembly

G05224358

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
