Exploded View
Exploded View

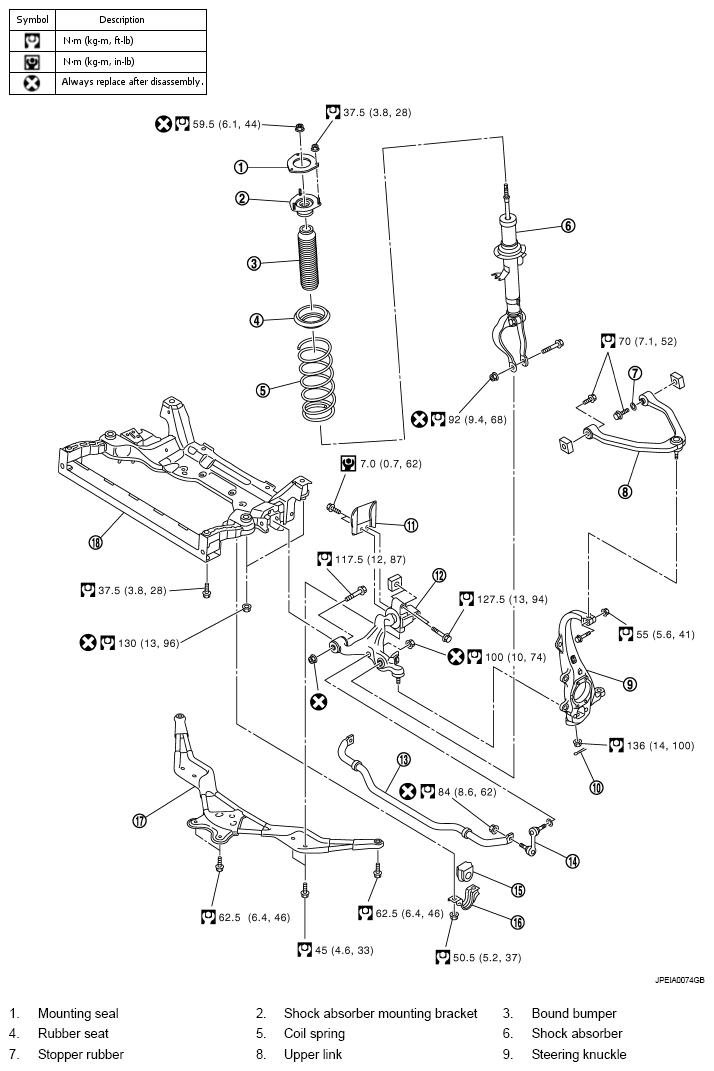

Fig 1: Exploded View Of Front Suspension Assembly With Torque Specifications
Refer to "
COMPONENTS
" for symbols in the figure.
