Component Parts Location

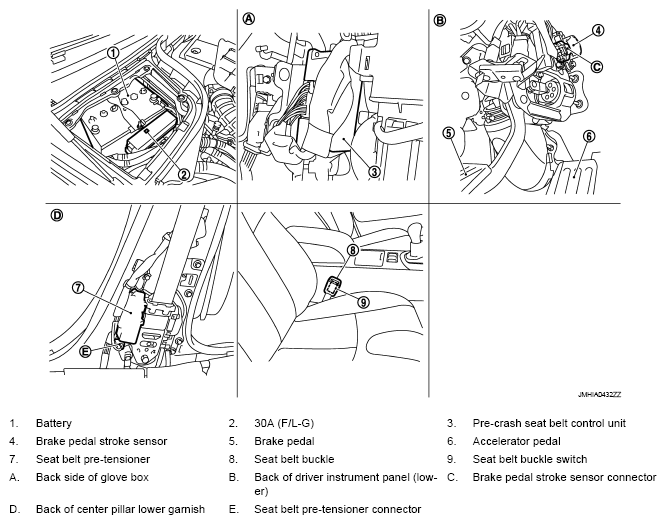

Fig 1: Identifying Pre-Crash Seat Belt System Component Location
G05823400Courtesy of NISSAN MOTOR CO., U.S.A.
