Section 1 (Manual Transmission)
>>
6MT: FS6R31A
>>
On-Vehicle Repair
>>
Shift Control
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
See
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
and
COMPONENTS

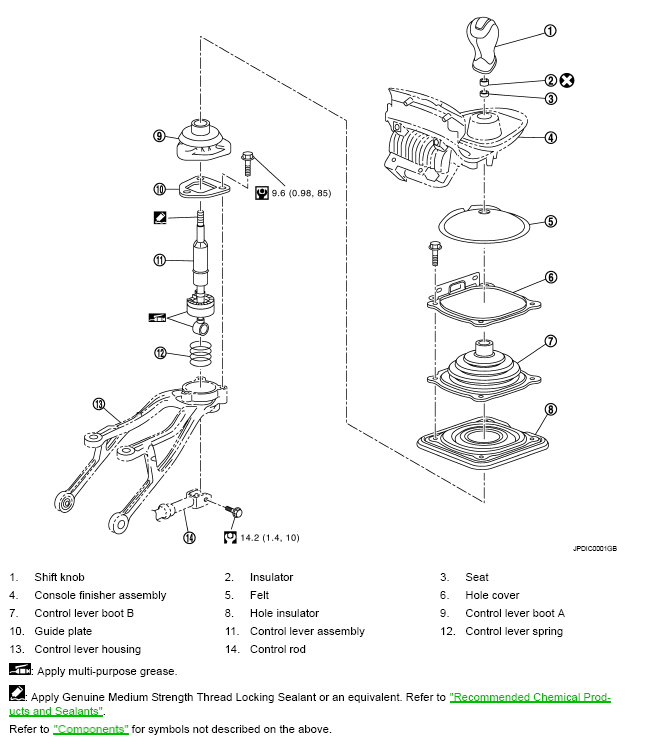

Fig 1: Exploded View Of Shift Control With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
