Timing Chain: Components

WARNING: This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

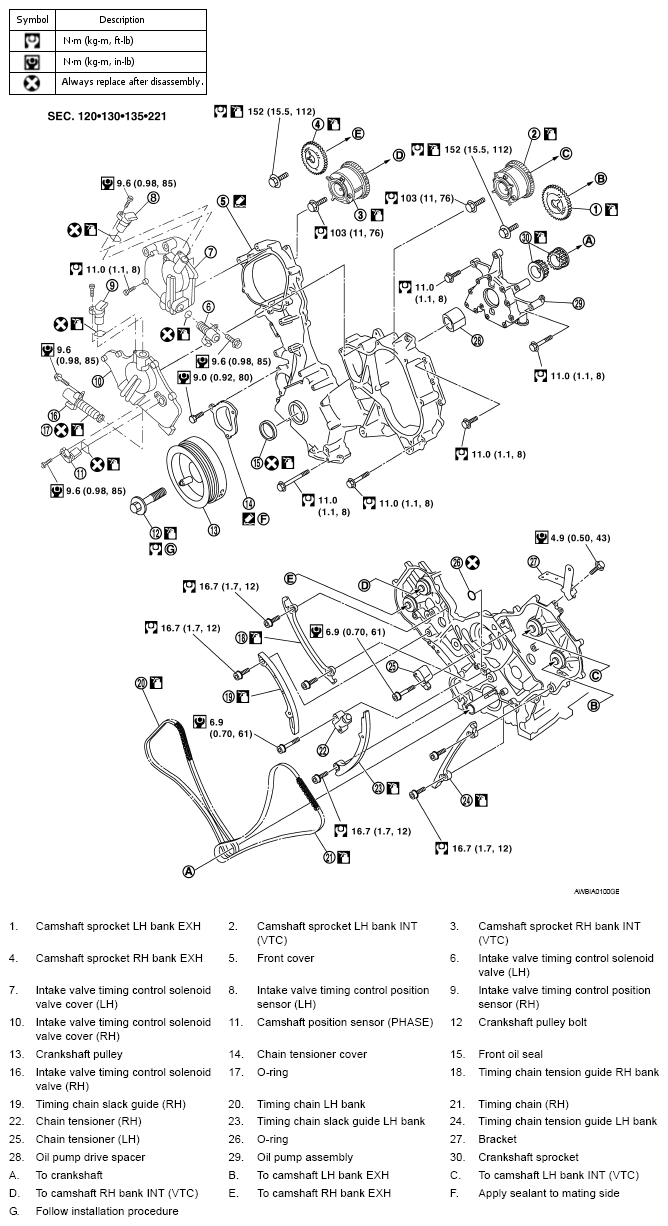

Fig 1: Timing Chain Replacement Components With Torque Specifications
G05739007Courtesy of NISSAN MOTOR CO., U.S.A.
