System Diagram

WARNING: This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

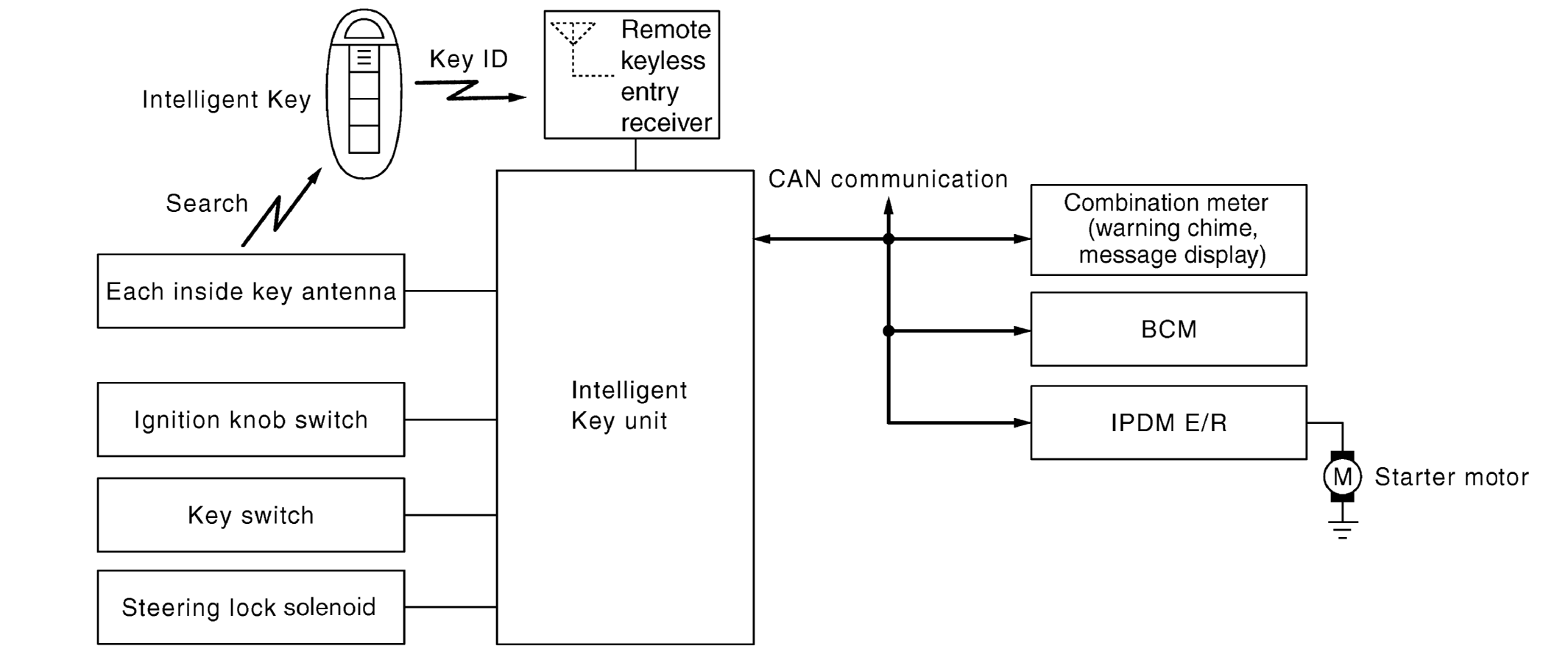

Fig 1: Intelligent Key And Engine Start Function System Diagram
G05382187
