AWD : Exploded View
AWD : Exploded View

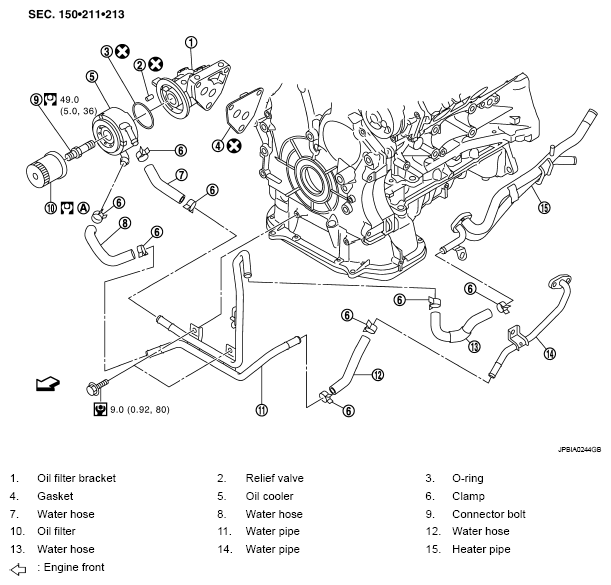

Fig 1: Exploded View Of Oil Cooler (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbol marks in the figure.
