Front Drive Shaft
>>
Exploded View
>>
Removal
Exploded View: Removal

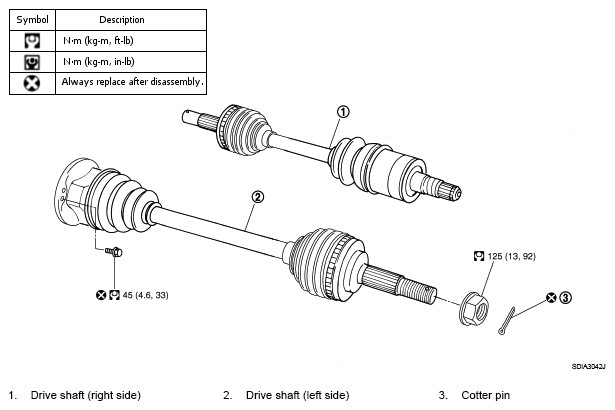

Fig 1: Exploded View Of Front Drive Shaft With Torque Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
GENERAL INFORMATION
for symbols in the figure.
