Infiniti
>>
2008
>>
G35 Base
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
VDE / TCS / Abs
>>
On-Vehicle Repair
>>
Yaw Rate/Side G Sensor
>>
Exploded View
Exploded View

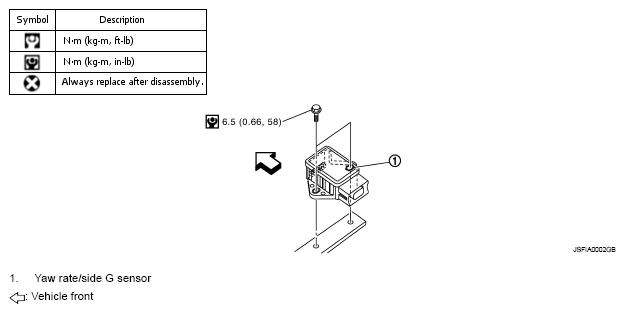

Fig 1: Exploded View Of Yaw Rate/Side G Sensor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
