Trouble Diagnosis: Schematic

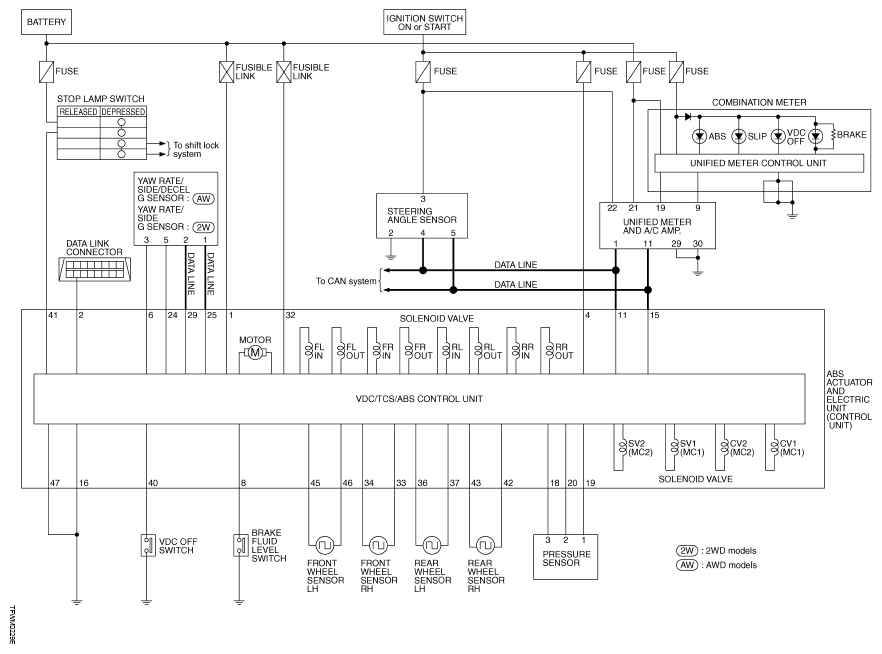

Fig 1: Identifying Schematic Diagram

G05220531

Courtesy of NISSAN MOTOR CO., U.S.A.
