Vehicle Security (Theft Warning) System: Schematic

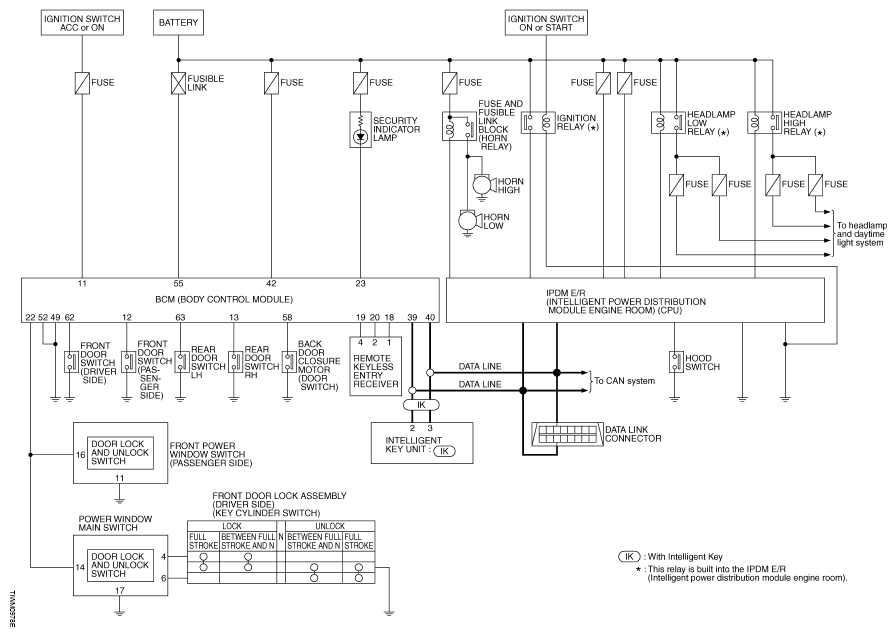

Fig 1: Identifying Schematic Diagram
G05221036Courtesy of NISSAN MOTOR CO., U.S.A.
