Wiring Diagram - KEYLES -

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

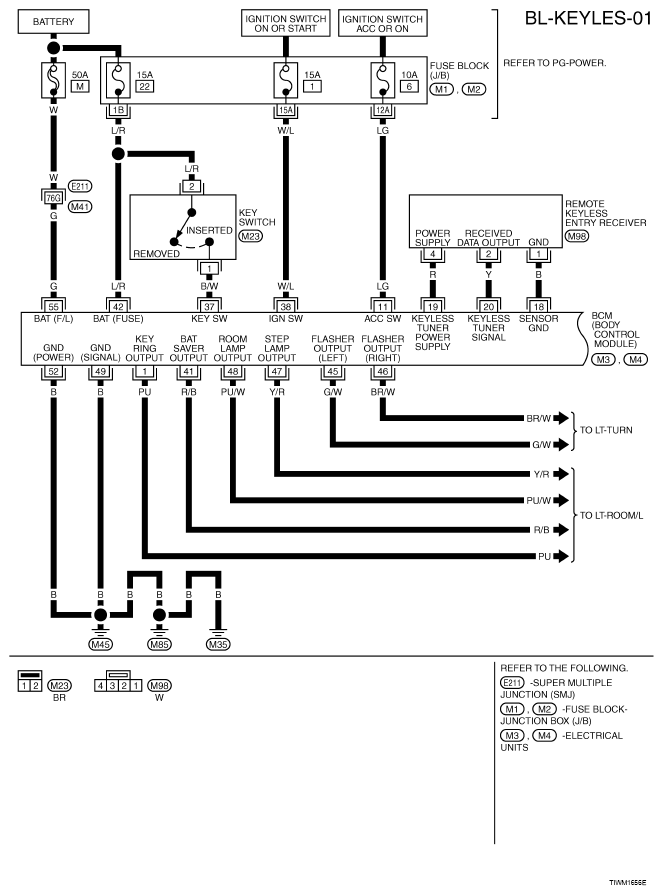

Fig 1: Identifying BL-KEYLES-01 - Wiring Diagram
G05220809Courtesy of NISSAN MOTOR CO., U.S.A.

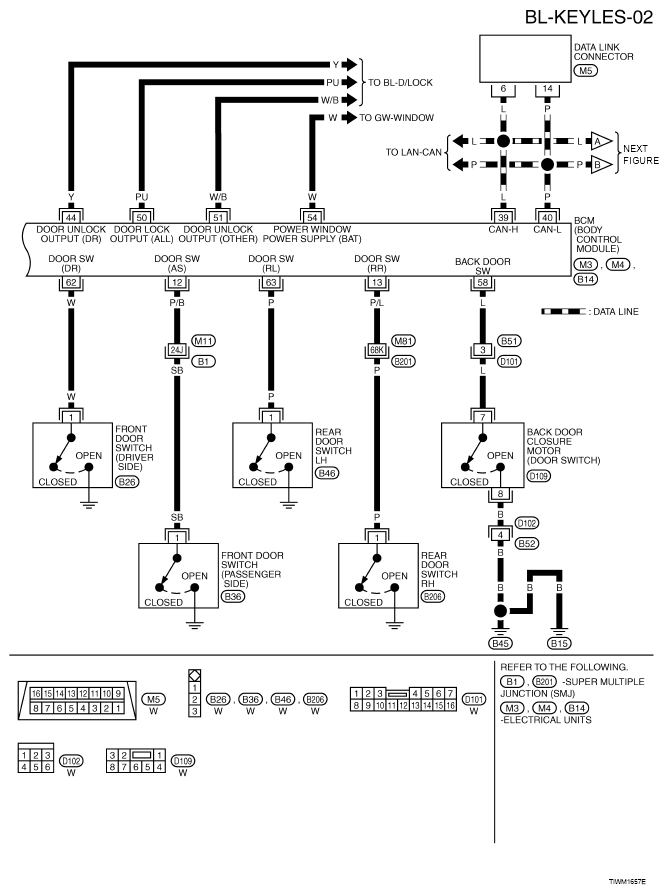

Fig 2: Identifying BL-KEYLES-02 - Wiring Diagram
G05220810Courtesy of NISSAN MOTOR CO., U.S.A.

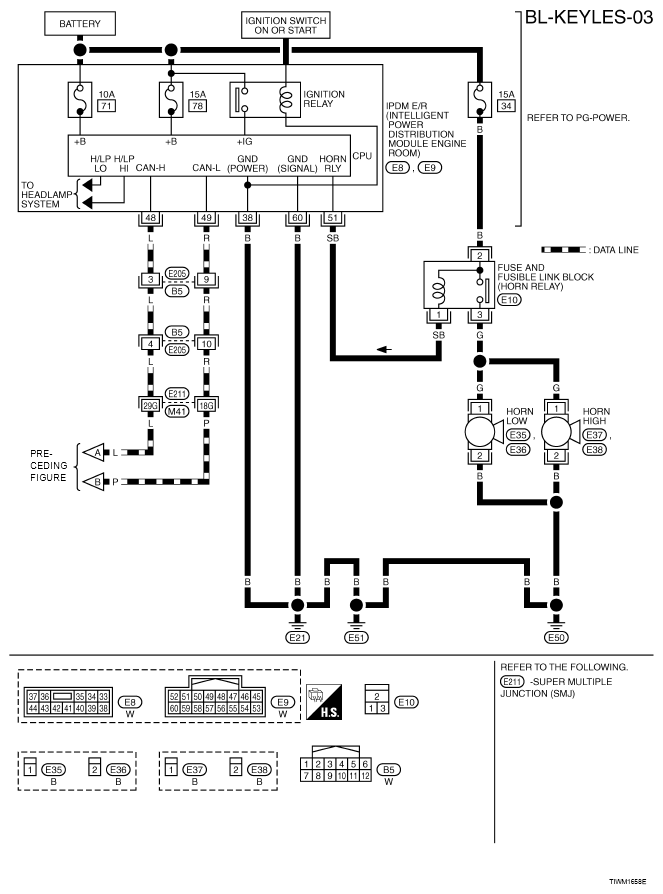

Fig 3: Identifying BL-KEYLES-03 - Wiring Diagram
G05220811Courtesy of NISSAN MOTOR CO., U.S.A.
