Notes
Fitting Adjustment: Notes

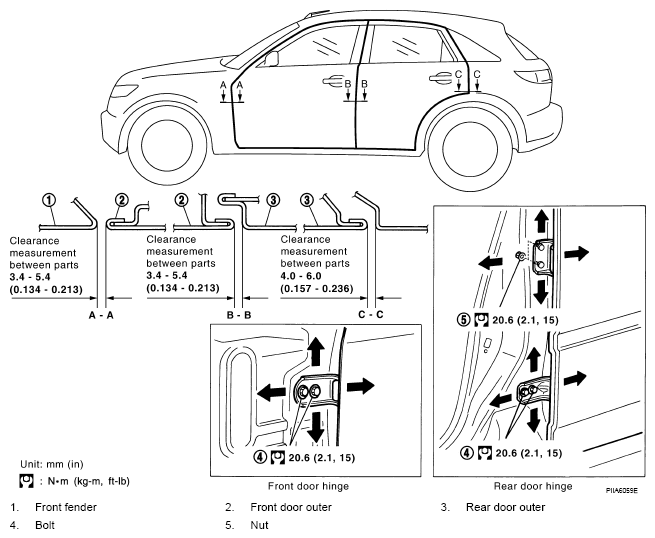

Fig 1: Door Fitting Adjustment Area With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
