Home >> Infiniti >> 2008 >> FX35 AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Body, Lock & Security System >> Front Door Lock >> Removal and Installation >> Notes

Removal and Installation: Notes

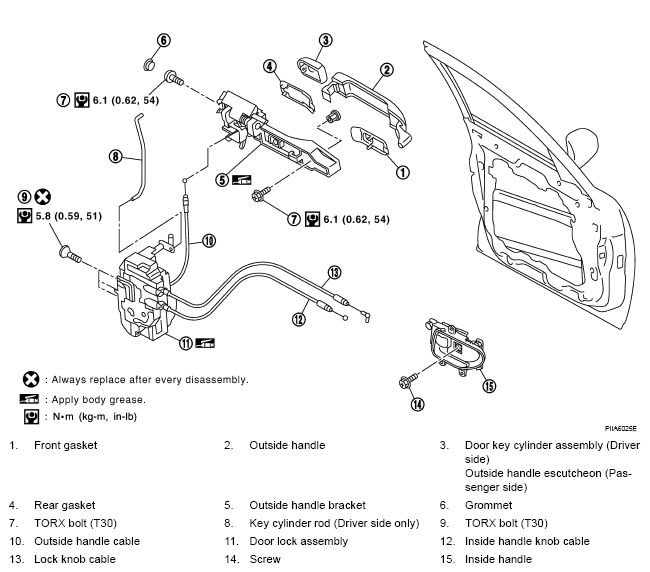

Fig 1: Front Door Lock Removing/Installing Replacement Components With Torque Specifications

G05220952

Courtesy of NISSAN MOTOR CO., U.S.A.
