Infiniti
>>
2008
>>
EX35 Base, RWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension
>>
AWD
>>
On-Vehicle Repair
>>
Front Stabilizer
>>
Exploded View
Exploded View

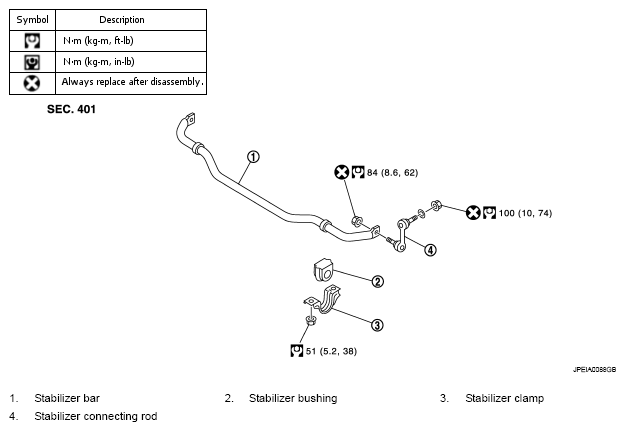

Fig 1: Exploded View Of Front Stabilizer Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the figure.
