Exploded View
Exploded View

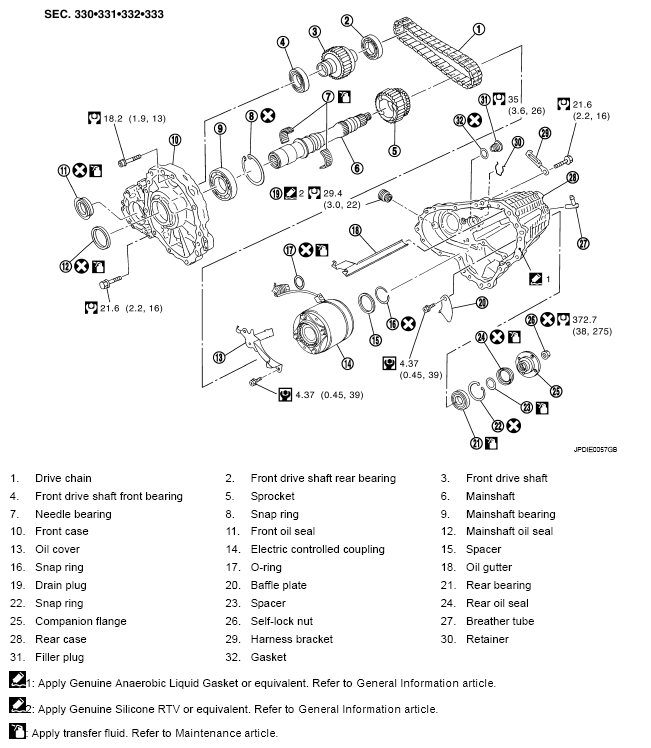

Fig 1: Exploded View Of Front Case & Rear Case Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols not described above.
