AWD : Exploded View
AWD : Exploded View

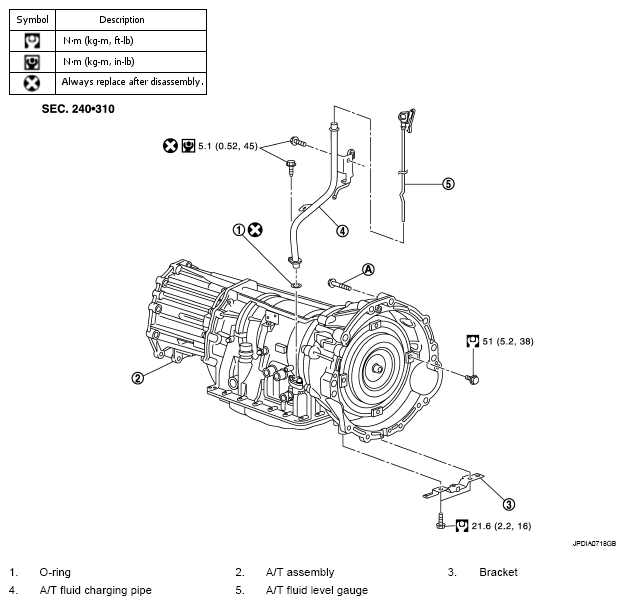

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications - AWD
Courtesy of NISSAN MOTOR CO., U.S.A.
