Removal and Installation: Installation
Note the following, and install in the reverse order of removal.
CAUTION:
- Be careful not to damage connector when installing any connector.
- Do not reuse drain plug gasket.
- Do not reuse O-ring.
- Apply ATF to O-ring.
- Adjust bolt hole of bracket to bolt hole of control valve with TCM when installing A/T fluid temperature sensor 2 (with bracket).
- Refer to the followings when installing control valve with TCM in transmission case.CAUTION:

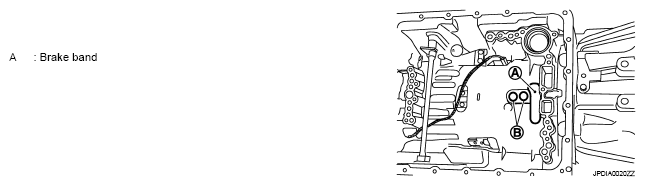

- Make sure that turbine revolution sensor securely installs turbine revolution sensor hole (B).
- Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
- Assemble it so that manual valve (1) cutout is engaged with manual plate (2) projection.

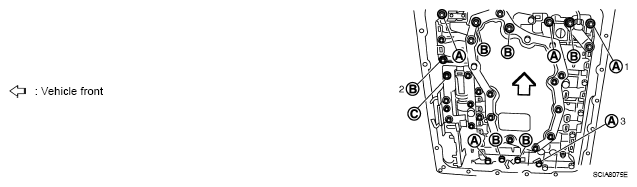

- Install bolts (A), (B) and (C) in control valve with TCM. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 → 2 → 3), and then tighten other bolts. Tighten control valve with TCM bolts to the specified torque.
BOLT SYMBOL CHART
| Bolt symbol | A | B | C |
|---|---|---|---|
| Number of bolts | 5 | 6 | 1 |
| Length mm (in) | 42 (1.65) | 55 (2.17) | 40 (1.57) |
| Tightening torque N.m (km-g, in-lb) | 7.9 (0.81, 70) | With ATF applied | |
| 7.9 (0.81, 70) | |||
- Refer to the followings when installing oil pan (2) (with oil pan gasket) and clips (1) to transmission case.
CAUTION:
- Do not reuse oil pan gasket and oil pan mounting bolts.
- Install oil pan gasket in the direction to align hole position.
- Install it so that drain plug (3) comes to the position as shown in the figure.
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
- Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.
