Rear Lower Link & Coil Spring
>>
Exploded View
Exploded View

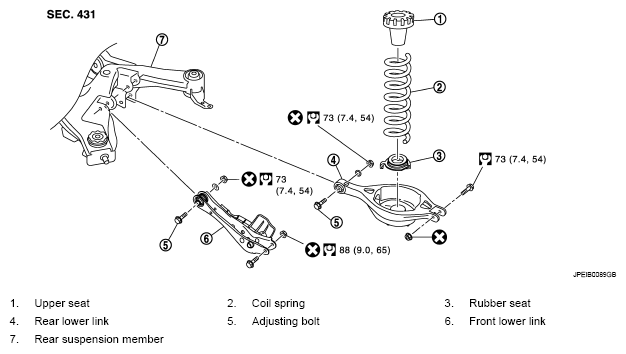

Fig 1: Identifying Exploded View Of Rear Lower Link & Coil Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the figure.
